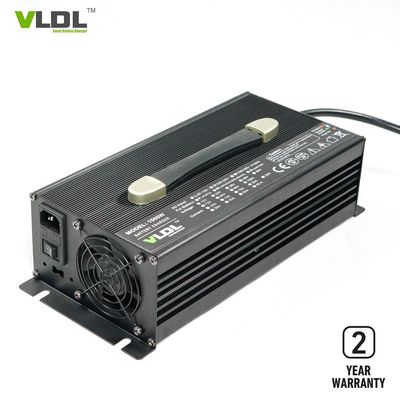

110V 48V 30A Lithium Battery Charger Smart Charging Aluminum

110V 48V 30A Lithium Battery Charger Smart Charging Aluminum

  • 110V 48V 30A Lithium Battery Charger Smart Charging Aluminum
  • 110V 48V 30A Lithium Battery Charger Smart Charging Aluminum
  • 110V 48V 30A Lithium Battery Charger Smart Charging Aluminum
  • 110V 48V 30A Lithium Battery Charger Smart Charging Aluminum
  • 110V 48V 30A Lithium Battery Charger Smart Charging Aluminum
110V 48V 30A Lithium Battery Charger Smart Charging Aluminum
Product Details:
Place of Origin: CHINA
Brand Name: VLDL
Certification: CE, ROHS
Model Number: VL4830L
Payment & Shipping Terms:
Minimum Order Quantity: 4 pcs
Price: Negotiable
Packaging Details: 4 pcs / carton
Delivery Time: 7 - 10 days
Payment Terms: TT, Paypal
Supply Ability: 1,000 pcs / month
Contact Now
Detailed Product Description
Case: Aluminum Dimensions: 330*150*90mm
Net Weight: 6.5kg Input Volt: 110 Or 230 Vac
Max Charing: Max 54.6V / 57.6V / 58.4V Suit For Battery: LiFePO4, LiMnO2, Li-ion Batteries
Charge Mothed: Auto. CC CV Or Shut-off Warranty: Fully 2 Years
High Light:

48V 30A Lithium Battery Charger

,

110V Lithium Battery Charger

,

48V 30A charger battery lithium

110V 48V 30A Lithium Battery Charger Smart Charging Aluminum



48V 30A Lithium Battery Charger, 110V or 230V input, max 54.6V 58.4V smart charging



This smart 48V 30A Lithium Battery Charger can charge fast for a 48V lithium ion or LiFePO4 battery pack range from 90Ah to 180Ah. Charging time is from 3-6 hours depending on battery’s capacity.



Single input 110Vac (90~132Vac range) or 230Vac (180~264Vac range) is available for different countries. We also provide free different AC plug types, such as US type, Euro type, UK type etc.



Our 48V 30A lithium ion battery charger is intelligent and controlled by microprocessor, high frequency switching mode power supply technology battery charger. When the AC power on and it’s connected to your 48V lithium battery pack, it begins to detect your battery state automatically and then start CC (constant current), CV (constant voltage) charging steps. It turns to Green light once your battery pack reaches to target voltage 54.6V or 58.4V which the max voltage is customized. All charging cycles are automatic, if you leave the charger on, it start a new cycle of charging when detect battery is discharged. At the end of the charging cycle, charger’s charging current is very small (we often set 8% as the switching point of turning to green) in order to protect battery’s life.



For the output connector, we customize by your technical requests. We usually provide free Alligator Clips, Anderson, Ring Terminals or only Wire out with Bared Leads in order to meet your special applications. Just tell us and we trust we can meet your requirements.



As a 15 years China Battery Charger Manufacturer, we have being earned much reputation in this industry with our high quality charger and best service, also our reasonable price is your best choice.



Features:

Rated 48V 30A output.

Input single 110Vac or 230Vac, 50Hz~60Hz.

Set max 54.6V / 57. 58.4 / 60V by your battery types.

LCD status display of Charging Voltage, Current, Time and Percentage.

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Automatically detecting your battery voltage and start charging with cycle.

Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

Multi protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

100% full load burn-in test, guarantee reliability.

2 years warranty.



Simple Guidelines when Buying a Charger:

1. Choose the correct charger by battery chemistry like lead-acid, li-ion, LiFePO4 etc. Most chargers serve one chemistry only. Make sure that the battery voltage agrees with the charger. Do not charge if different. A lead acid battery charger does not suit for a lithium battery (Li-ion, LiFePO4, LiMnO2 etc.) and a lithium battery charger does not suit for a lead acid battery (AGM, GEL etc.).



2. The Ah (battery capacity) rating of a battery can be marginally different than specified. Charging a larger battery will take a bit longer than a smaller pack and vice versa. Do not charge if the Ah rating deviates too much (more than 25 percent).



3. A lead acid charger should have a float charge when fully saturated; a nickel-based charger must switch to trickle charge when full. Lithium battery cannot absorb overcharge and no need of trickle or floating charge. Trickle charge and float charges compensate for the losses incurred by self-discharge.



4. A high-wattage charger shortens the charge time but there are limitations as to how fast a battery can be charged. For lead acid battery, charging time often 8-12 hours. For lithium battery, charging time is often 3-4 hours. For example, if your lead acid battery 48V100Ah, then you need a 48V 8-12A lead acid battery charger. If your lithium battery is 48V100Ah, you need a 48V 25-30A lithium battery charger.



Charging connection drawing and charging curve:

110V 48V 30A Lithium Battery Charger Smart Charging Aluminum 0110V 48V 30A Lithium Battery Charger Smart Charging Aluminum 1





Output series: 2,000W      Size: 330×150×90 mm      Net weight: 6.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching



AC Input:

110 / 230V



Frequency:

47~63HZ



VL12100L 12V LiFePO4 Battery   14.6V 100A CC5~8%
VL12100 12V Lead-acid Battery 13.5V 14.7V 100A CC20%
VL14100 14V AGM Battery 13.5V 14.4V 100A CC20%
VL16100L 16V LiFePO4 Battery   18.2V 100A CC5~8%
VL2460LM 24V Li-MnO2 Battery   29.4V 60A CC5~8%
VL2460L 24V LiFePO4 Battery   29.2V 60A CC5~8%
VL2460 24V Lead-acid Battery 27.6V 29.4V 60A CC20%
VL3640LM 36V Li-MnO2 Battery   42V 40A CC5~8%
VL3640L 36V LiFePO4 Battery   43.8V 40A CC5~8%
VL3640 36V Lead-acid Battery 41.4V 44.1V 40A CC20%
VL4830LM 48V Li-MnO2 Battery   54.6V 30A CC5~8%
VL4830L 48V LiFePO4 Battery   43.8V 30A CC5~8%
VL4830 48V Lead-acid Battery 55.2V 58.8V 30A CC20%
VL6025L 60V LiFePO4 Battery   73V 25A CC5~8%
VL6025 60V Lead-acid Battery 67.5V 73.5V 25A CC20%
VL7220L 72V LiFePO4 Battery   87.6V 20A CC5~8%
VL7220 72V Lead-acid Battery 81V 88.2V 20A CC20%
VL8418L 84V LiFePO4 Battery   102.2V 18A CC5~8%
VL8418 84V Lead-acid Battery 94.5V 102.9V 18A CC20%
VL9616L 96V LiFePO4 Battery   116.8V 16A CC5~8%
VL9616 96V Lead-acid Battery 108V 117.6V 16A CC20%
Note: customized input / output / plug type / connectors are available.
