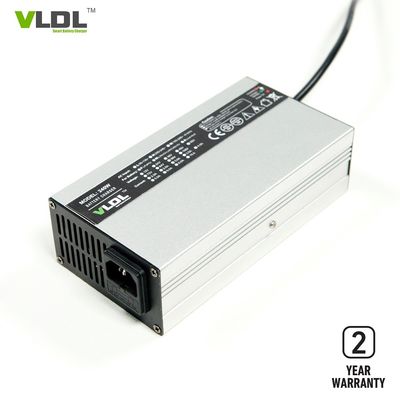

CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V

CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V

  • CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V
  • CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V
  • CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V
  • CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V
  • CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V
CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V
Product Details:
Place of Origin: CHINA
Brand Name: VLDL
Certification: CE, ROHS
Model Number: VL1208
Payment & Shipping Terms:
Minimum Order Quantity: 12 pcs
Price: Negotiable
Packaging Details: 12 pcs / carton
Delivery Time: 7 - 10 days
Payment Terms: TT, Paypal
Supply Ability: 1,000 pcs / month
Contact Now
Detailed Product Description
Case: Aluminum Dimensions: 155*90*50 MM
Net Weight: 1.0 KG AC Input: 110 - 230 Vac
Output: Rated 12V 8A Max Charge: 14V 14.4V 14.7V 8Amps
Charge Method: Automatic CC CV And Float Efficiency: >85%
Applied To: 12V AGM GEL SLA Batteries Warranty: 2 Years
High Light:

AGM Lead Acid Battery Charger

,

12V 8A Lead Acid Battery Charger

,

12V 8A float battery charger

CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V



Automatic CC CV Float charging 12V 8A AGM battery charger, max 14.4V or 14.7V for lead acid battery


Brief introduction:

Universal 90~264Vac input voltage.

12V 8A rated output Smart Battery Charger.

14.4V / 14.6 / 14.7V customized max charging voltage for SLA, AGM, GEL batteries.

Aluminum Black or Silver color case.

Micro-processor controlled and intelligent 4 steps charging.

85% high efficiency.

2 years warranty, high quality.

Spcifications:
Item No.: VL1208
Dimension: 155*90*50mm.
Gross weight: 0.9kg.
Input voltage: wide 90~264Vac.
Output rated: 12Vdc 8Amps.
Max charging: customized 14.4V / 14.6V / 14.7V
Applied to battery Types: 12V AGM, GEL, SLA battery.
Smart Charging: Auto. CC, CV, Floating or Cut-off.



Output series: 180W     Size: 155×90×50 mm     Net weight: 1.0 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

85~264V



Frequency:

47~63HZ



VL1208L 12V LiFePO4 Battery   14.6V 8A CC5~8%
VL1208 12V Lead-acid Battery 13.5V 14.7V 8A CC20%
VL2405LM 24V Li-MnO2 Battery   29.4V 5A CC5~8%
VL2405 24V Lead-acid Battery 27.6V 29.4V 5A CC20%
VL3604L 36V Li-MnO2 Battery   42V 4A CC5~8%
VL3604 36V Lead-acid Battery 41.4V 44.1V 4A CC20%
VL4803LM 48V Li-MnO2 Battery   54.6V 3A CC5~8%
VL4803 48V Lead-acid Battery 55.2V 58.8V 3A CC20%
Note: customized input / output / plug type / connectors are available.


Factory Pictures:

CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V 0

CC CV Float 12V 8A AGM Lead Acid Battery Charger Max 14.4V 14.7V 1



Battery Charger Knowledge



Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.



Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.



Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.
