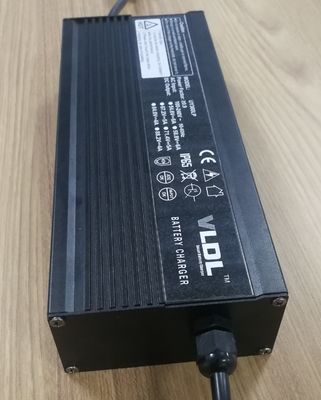

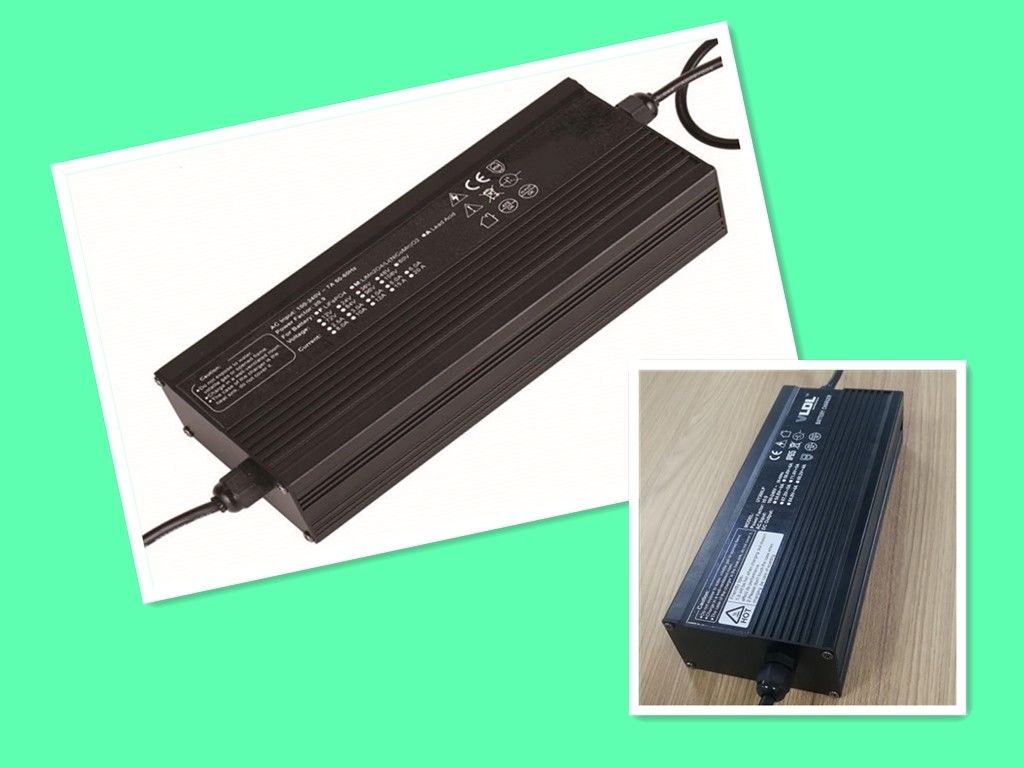

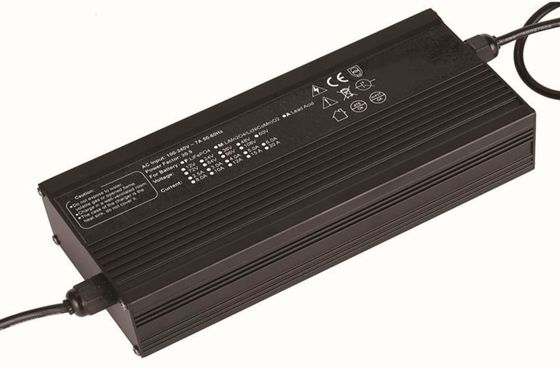

300W 12V 15A Waterproof Battery Charger IP66 Smart CC CV Charging

300W 12V 15A Waterproof Battery Charger IP66, TUV CE certified, smart CC CV charging

Brief Description:

Waterproof / Marine Lithium 12V 15Amps intelligent battery charger is designed for lithium battery, input with worldwide 110 to 230Vac with PFC and rated output voltatge is 12 Volt 15 amps. Smart max charging voltage is 14.7V for lead acid type batteries and 14.6V / 14.4V for Li-ion or LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac (90 ~ 264Vac) with PFC, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

1 LEDs: LED Red (power on), LED green (charging/full).

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 91%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 220 × 93 × 49 MM

2) Net weight: 2.6 KG

3) Max charging voltage(CV): 14.6V / 14.4V / 14.7V

4) Floating voltage: /

5) Max output current (CC): 15 amps

6) Charging method: automtaic Pre-charge, CC, CV, Floating

7) AC input voltage: 110-230 Vac universal

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, AU, UK, Euro

10) Output connector type: Clips, Anderson

11) Enclosure: Aluminum

12) Waterproof rate: IP65 / IP66
