|Place of Origin:||China|
|Certification:||EMC, LVD, RoHS|
|Minimum Order Quantity:||4 / pcs|
|Packaging Details:||Carton, 4 pcs / carton|
|Payment Terms:||T/T, Paypal|
|Supply Ability:||1000pcs / month|
|N.W:||6.5 KG||Input Votage:||110 Or 230 Vac|
|Max Charging:||29.2 / 29.4Vdc, 50A||Input Plug:||US / EU / UK / AU|
|Output Connector:||Clips, Anderson||Charge Step:||Automatic CC, CV, Floating|
|Efficiency:||> 90%||Warranty:||2 Years|
24vdc battery charger,
24v lead acid battery charger

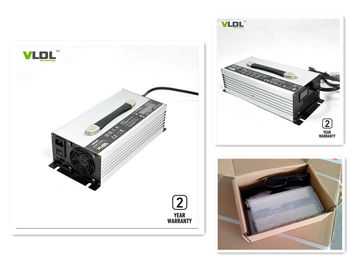

Smart Battery Charger 24V 50A small aluminum size with SMPS technology fast charging
1) Dimensions(LxWxH): 330 x 150 x 90 mm
2) Net weight: 6.5 KG
3) Max charging voltage(CV): 29.4 / 29.2 Vdc
4) Floating voltage: 27.6V
5) Max output current (CC): 50 amps
6) Charging method: CC, CV and Floating
7) AC input voltage: 110 or 230Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: UK, US, EU, AU, etc.
10) Output connector type: Clips, Anderson, etc.
11) Enclosure: Aluminum
24V 60A smart battery charger is designed for 24V Lead Acid battery. It can charge 24V SLA, AGM, GEL types batteries. Smart charging with CC, CV and Floating method. With max 29.4 / 29.2 Volt 60 Amps fast charging and multi-protections. High quality with two years warranty.
VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.
VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.
VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.
1) Optional charging methods: LiFePO4, Li-ion, LiMo2, AGM, GEL, Flooded.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Input 110 or 230Vac 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
|Output series: 2,000W Size: 330×150×90 mm Net weight: 6.5 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
110 / 230V
|VL12100L||12V LiFePO4 Battery||14.6V||100A||CC5~8%|
|VL12100||12V Lead-acid Battery||13.5V||14.7V||100A||CC20%|
|VL14100||14V AGM Battery||13.5V||14.4V||100A||CC20%|
|VL16100L||16V LiFePO4 Battery||18.2V||100A||CC5~8%|
|VL2460LM||24V Li-MnO2 Battery||29.4V||60A||CC5~8%|
|VL2460L||24V LiFePO4 Battery||29.2V||60A||CC5~8%|
|VL2460||24V Lead-acid Battery||27.6V||29.4V||60A||CC20%|
|VL3640LM||36V Li-MnO2 Battery||42V||40A||CC5~8%|
|VL3640L||36V LiFePO4 Battery||43.8V||40A||CC5~8%|
|VL3640||36V Lead-acid Battery||41.4V||44.1V||40A||CC20%|
|VL4830LM||48V Li-MnO2 Battery||54.6V||30A||CC5~8%|
|VL4830L||48V LiFePO4 Battery||43.8V||30A||CC5~8%|
|VL4830||48V Lead-acid Battery||55.2V||58.8V||30A||CC20%|
|VL6025L||60V LiFePO4 Battery||73V||25A||CC5~8%|
|VL6025||60V Lead-acid Battery||67.5V||73.5V||25A||CC20%|
|VL7220L||72V LiFePO4 Battery||87.6V||20A||CC5~8%|
|VL7220||72V Lead-acid Battery||81V||88.2V||20A||CC20%|
|VL8418L||84V LiFePO4 Battery||102.2V||18A||CC5~8%|
|VL8418||84V Lead-acid Battery||94.5V||102.9V||18A||CC20%|
|VL9616L||96V LiFePO4 Battery||116.8V||16A||CC5~8%|
|VL9616||96V Lead-acid Battery||108V||117.6V||16A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
Q. Are you a factory or trading company?
A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.
Q. What's about the warranty for Danl battery chargers?
Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.
Q. Do you accept OEM order?
A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.
Q. What is about the lead time for an order?
A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.
Q. What certification do you have?
A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.
Q. Why choose your smart battery chargers?
A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
