|Place of Origin:||CHINA|
|Minimum Order Quantity:||4 pcs|
|Packaging Details:||4 pcs / carton|
|Delivery Time:||7 - 10 days|
|Payment Terms:||TT, Paypal|
|Supply Ability:||1,000 pcs / month|
|G.W:||6.5 KG||AC Input:||110 Or 230 Vac|
|DC Output:||12Vdc 100A||Designed For Battery:||LiFePO4, LiMnO2, Li-ion|
|Max Charging:||14.6V||Output Connector Type:||Customized By Applications|
|Manufacturer:||Danl New Energy Co., LTD|
li ion battery pack charger,
lithium battery smart charger

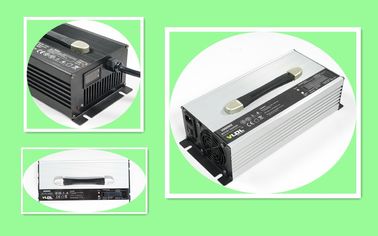

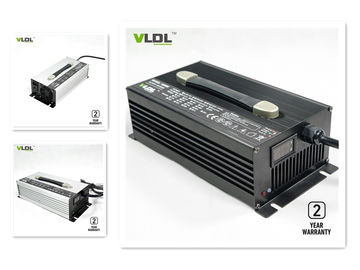

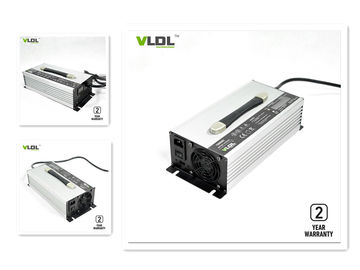

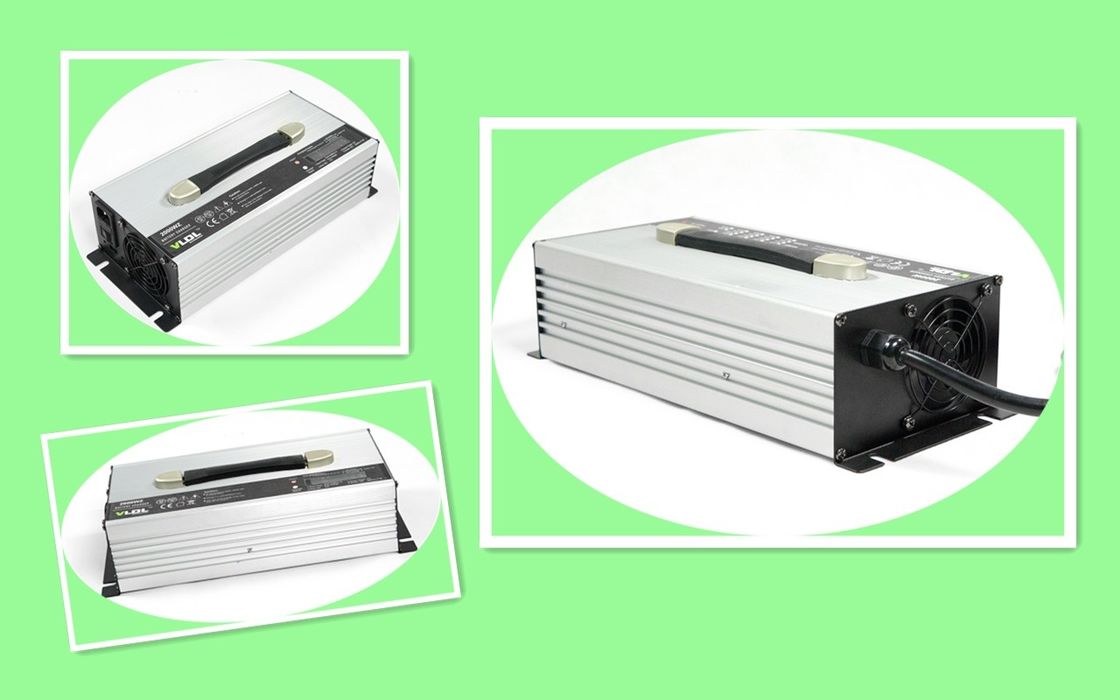

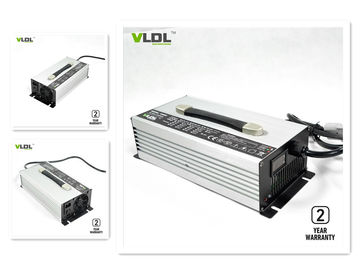

14.6V 100A Lithium Battery Charger, Customized for LiFePO4 / Li ion / LiMnO2 Battery, LCD Display of Charging Status
12V 100A lithium battery charger, input with 110Vac or 230Vac and rated output voltatge is 12V 100A. Smart max charging voltage is 14V / 14.4 / 14.6V for Lithium batteries including LiFePO4, LiMnO2, Li-ion. Intelligent 4 steps charging with pre-charge, CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast and safe (automatic lockout when charging), with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Optional charging methods: Lithium batteries.
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input 110Vac or 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
12 years warranty.
1) Dimensions(LxWxH): 330 x 150 x 90 mm
2) Net weight: 6.5 KG
3) Max charging voltage(CV): 14 / 14.4 / 14.6 volt
4) Floating voltage: customized
5) Max output current (CC): 100 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110Vac or 240Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
|Output series: 2,000W Size: 330×150×90 mm Net weight: 6.5 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
110 / 230V
|VL12100L||12V LiFePO4 Battery||14.6V||100A||CC5~8%|
|VL12100||12V Lead-acid Battery||13.5V||14.7V||100A||CC20%|
|VL14100||14V AGM Battery||13.5V||14.4V||100A||CC20%|
|VL16100L||16V LiFePO4 Battery||18.2V||100A||CC5~8%|
|VL2460LM||24V Li-MnO2 Battery||29.4V||60A||CC5~8%|
|VL2460L||24V LiFePO4 Battery||29.2V||60A||CC5~8%|
|VL2460||24V Lead-acid Battery||27.6V||29.4V||60A||CC20%|
|VL3640LM||36V Li-MnO2 Battery||42V||40A||CC5~8%|
|VL3640L||36V LiFePO4 Battery||43.8V||40A||CC5~8%|
|VL3640||36V Lead-acid Battery||41.4V||44.1V||40A||CC20%|
|VL4830LM||48V Li-MnO2 Battery||54.6V||30A||CC5~8%|
|VL4830L||48V LiFePO4 Battery||43.8V||30A||CC5~8%|
|VL4830||48V Lead-acid Battery||55.2V||58.8V||30A||CC20%|
|VL6025L||60V LiFePO4 Battery||73V||25A||CC5~8%|
|VL6025||60V Lead-acid Battery||67.5V||73.5V||25A||CC20%|
|VL7220L||72V LiFePO4 Battery||87.6V||20A||CC5~8%|
|VL7220||72V Lead-acid Battery||81V||88.2V||20A||CC20%|
|VL8418L||84V LiFePO4 Battery||102.2V||18A||CC5~8%|
|VL8418||84V Lead-acid Battery||94.5V||102.9V||18A||CC20%|
|VL9616L||96V LiFePO4 Battery||116.8V||16A||CC5~8%|
|VL9616||96V Lead-acid Battery||108V||117.6V||16A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
Q. Are you a factory or trading company?
A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.
Q. What's about the warranty for Danl battery chargers?
Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.
Q. Do you accept OEM order?
A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.
Q. What is about the lead time for an order?
A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.
Q. What certification do you have?
A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.
Q. Why choose your smart battery chargers?
A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
