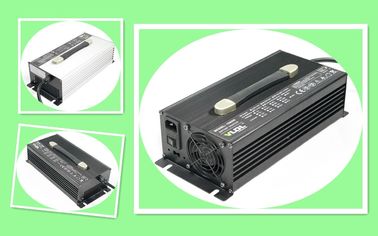

54.6V 25A Lithium Ion Battery Pack Charger VLDL With 2 Years Warranty

54.6V 25A Lithium Ion Battery Pack Charger VLDL With 2 Years Warranty

  • 54.6V 25A Lithium Ion Battery Pack Charger VLDL With 2 Years Warranty
  • 54.6V 25A Lithium Ion Battery Pack Charger VLDL With 2 Years Warranty
  • 54.6V 25A Lithium Ion Battery Pack Charger VLDL With 2 Years Warranty
  • 54.6V 25A Lithium Ion Battery Pack Charger VLDL With 2 Years Warranty
  • 54.6V 25A Lithium Ion Battery Pack Charger VLDL With 2 Years Warranty
  • 54.6V 25A Lithium Ion Battery Pack Charger VLDL With 2 Years Warranty
54.6V 25A Lithium Ion Battery Pack Charger VLDL With 2 Years Warranty
Product Details:
Place of Origin: China
Brand Name: VLDL
Certification: CE, RoHS, C-Tick
Model Number: VL4825L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD188/unit
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Case Material: Aluminium Color: Silver / Black
Size: 300*150*90 Mm Net Weight: 5.5 KG
Technology: SMPS, MCU Controlled Smart Charging Charging: 54.6V 25A
For EV: Charge For E-Forklifts Protections: Short Circuit, Over Voltage, Over Temperature, Reverse Polarity
Charge Indicator: 2 LEDs LCD Display: Display Charging Voltage, Current, Capacity And Error
High Light:

48 volt battery trickle charger

,

48 volt golf cart charger

54.6V 25A Automatic Battery Charger For Lithium ion Battery Pack, VLDL high quality with 2 years warranty



Brief Description:

Advanced high frequency switching mode power supply technology.

Designed for 48V lithium or lead acid battery.

Custom-made charging method is available.

Single 110V or 230Vac. Rated output voltatge is 48V 25A.

Max charging voltage could be 54.6V, 58.4V or 58.8V according to battery types.

Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

Suit to charge 48V e-forklifts, e-club cars or other EVs.



Technical Specs.:

1) Dimensions(LxWxH): 300 x 150 x 90 mm

2) Net weight: 5.5 KG

3) Max charging voltage(CV): 54.6 / 58.4 / 58.8 volt

4) Floating voltage: customized

5) Max output current (CC): 25 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by users country

10) Output connector type: customized by applications

11) Enclosure: Aluminum



Ralated Charger of 1500W:

Output series: 1,500W Size: 300×150×90 mm Net weight: 5.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching



AC Input:

230V



Frequency:

47~63HZ



VL1280L 12V LiFePO4 Battery   14.6V 80A CC5~8%
VL1280 12V Lead-acid Battery 13.5V 14.7V 80A CC20%
VL1480 14V AGM Battery 13.5V 14.4V 80A CC20%
VL1680L 16V LiFePO4 Battery   18.2V 80A CC5~8%
VL2445LM 24V Li-MnO2 Battery   29.4V 45A CC5~8%
VL2445L 24V LiFePO4 Battery   29.2V 45A CC5~8%
VL2445 24V Lead-acid Battery 27.6V 29.4V 45A CC20%
VL3630LM 36V Li-MnO2 Battery   42V 30A CC5~8%
VL3630L 36V LiFePO4 Battery   43.8V 30A CC5~8%
VL3630 36V Lead-acid Battery 41.4V 44.1V 30A CC20%
VL4825LM 48V Li-MnO2 Battery   54.6V 25A CC5~8%
VL4825L 48V LiFePO4 Battery   43.8V 25A CC5~8%
VL4825 48V Lead-acid Battery 55.2V 58.8V 25A CC20%
VL6020L 60V LiFePO4 Battery   73V 20A CC5~8%
VL6020 60V Lead-acid Battery 67.5V 73.5V 20A CC20%
VL7215L 72V LiFePO4 Battery   87.6V 15A CC5~8%
VL7215 72V Lead-acid Battery 81V 88.2V 15A CC20%
VL8413L 84V LiFePO4 Battery   102.2V 13A CC5~8%
VL8413 84V Lead-acid Battery 94.5V 102.9V 13A CC20%
VL9612L 96V LiFePO4 Battery   116.8V 12A CC5~8%
VL9612 96V Lead-acid Battery 108V 117.6V 12A CC20%
Note: customized input / output / plug type / connectors are available
