|Place of Origin:||CHINA|
|Minimum Order Quantity:||10 pcs|
|Packaging Details:||10 pcs / carton|
|Delivery Time:||7 - 10 days|
|Payment Terms:||TT, Paypal, Payoneer|
|Supply Ability:||10,000 pcs / month|
|Casing:||Aluminium, Silver Or Black||Size:||230×120×70 MM|
|Net Weight:||2.5 KG||Input Volt:||110 - 230 Vac PFC|
|Output:||Rated 48V 10A, Max 54.6 / 58.4V||Max Power:||600W|
|Charge Battery:||48V Li Ion Batteries||Charge EV:||Electric Motorcycles / Scooters|
electric scooter battery charger,
lithium motorcycle battery charger

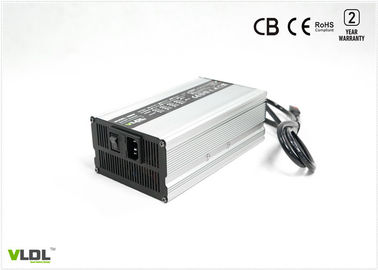

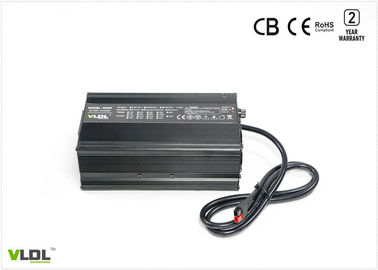

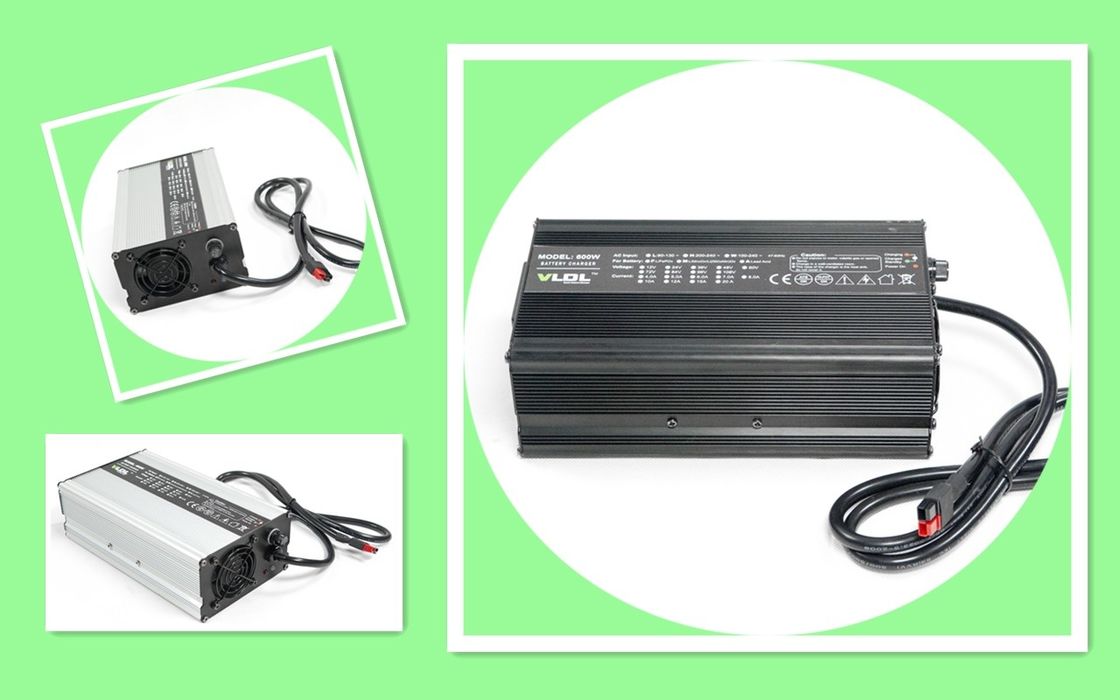

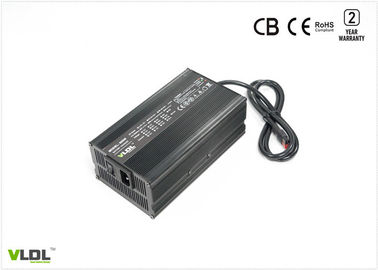

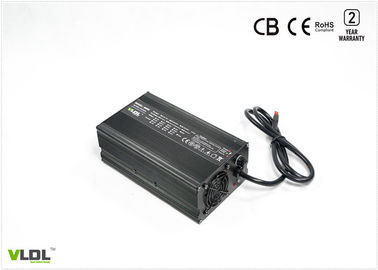

48V 10A Li Battery Charger For E - Motorcycles, CC CV Fast Charging With PFC Input 110 - 230Vac
Designed for 48V lithium ion battery powered Electric Motorcycles. Input with PFC worldwide 110 to 230Vac and rated output voltatge is 48V 10A. Smart max charging voltage is 54.6 / 58.4V for li-ion type batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.
AC input voltage: 110 / 240Vac
AC input freq.: 50 / 60 Hz
Rated output: 48V 10Amps
Max charging voltage: 54.6V / 58.4V
Dimensions(LxWxH): 230 x 120 x 70 mm
Net weight: 2.5 KG
Color: silver or black
High Frequency Switching Mode Power Supply
Smart MCU contolled
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Fully 2-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Charging 48V Lithium Battery Powerd Electric Motorcycles / Scooters.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connecotor by customer's applications.
|Output series: 600W PFC Size: 230×120×70 mm Net weight: 2.5 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
110 - 230V
|VL1225L||12V LiFePO4 Battery||14.6V||25A||CC5~8%|
|VL1225||12V Lead-acid Battery||13.5V||14.7V||25A||CC20%|
|VL1425||14V AGM Battery||13.5V||14.4V||25A||CC20%|
|VL1625L||16V LiFePO4 Battery||18.2V||25A||CC5~8%|
|VL2418LM||24V Li-MnO2 Battery||29.4V||18A||CC5~8%|
|VL2418L||24V LiFePO4 Battery||29.2V||18A||CC5~8%|
|VL2418||24V Lead-acid Battery||27.6V||29.4V||18A||CC20%|
|VL3612LM||36V Li-MnO2 Battery||42V||12A||CC5~8%|
|VL3612L||36V LiFePO4 Battery||43.8V||12A||CC5~8%|
|VL3612||36V Lead-acid Battery||41.4V||44.1V||12A||CC20%|
|VL4810LM||48V Li-MnO2 Battery||54.6V||10A||CC5~8%|
|VL4810L||48V LiFePO4 Battery||43.8V||10A||CC5~8%|
|VL4810||48V Lead-acid Battery||55.2V||58.8V||10A||CC20%|
|VL6008L||60V LiFePO4 Battery||73V||8A||CC5~8%|
|VL6008||60V Lead-acid Battery||67.5V||73.5V||8A||CC20%|
|VL7206L||72V LiFePO4 Battery||87.6V||6A||CC5~8%|
|VL7206||72V Lead-acid Battery||81V||88.2V||6A||CC20%|
|VL8405L||84V LiFePO4 Battery||102.2V||5A||CC5~8%|
|VL8405||84V Lead-acid Battery||94.5V||102.9V||5A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.
VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.
VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.
DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
