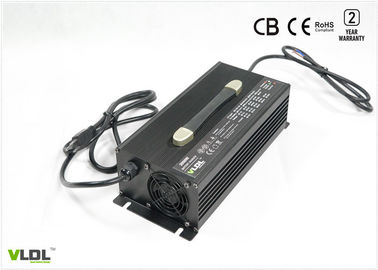

6.5 KG 330*150*90 MM High Voltage Battery Charger 130V 15A 4 Steps Smart Charging

6.5 KG 330*150*90 MM High Voltage Battery Charger 130V 15A 4 Steps Smart Charging

  • 6.5 KG 330*150*90 MM High Voltage Battery Charger 130V 15A 4 Steps Smart Charging
  • 6.5 KG 330*150*90 MM High Voltage Battery Charger 130V 15A 4 Steps Smart Charging
  • 6.5 KG 330*150*90 MM High Voltage Battery Charger 130V 15A 4 Steps Smart Charging
  • 6.5 KG 330*150*90 MM High Voltage Battery Charger 130V 15A 4 Steps Smart Charging
6.5 KG 330*150*90 MM High Voltage Battery Charger 130V 15A 4 Steps Smart Charging
Product Details:
Place of Origin: CHINA
Brand Name: VLDL
Certification: CE, ROHS
Model Number: VL13015L
Payment & Shipping Terms:
Minimum Order Quantity: 4 pcs
Price: Negotiable
Packaging Details: 4 pcs / carton
Delivery Time: 7-10 days
Payment Terms: TT, Paypal
Supply Ability: 1000 pcs / month
Contact Now
Detailed Product Description
Case Material: Aluminum Size: 330*150*90 MM
Net Weight: 6.5 KG Input Volt: 110 / 230 Vac
Output: Max 130Vdc 15A Applied Battery: 130V LiFePO4 Battery
Color: Black Or Silver Output Power: 2,00W Max
High Light:

auto battery charger

,

outdoor battery charger

6.5 KG 330*150*90 MM High Voltage Battery Charger 130V 15A 4 Steps Smart Charging



Brief Description:



Customized 130 volts 15 amps intelligent battery charger is designed for lithium battery, input with 110 or 230Vac and rated output voltatge is 130 volt 15 amps. Smart max charging voltage is 130V for lithium batteries and charging voltage can be customized by your battery. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable. Black or silver color are available.



Features:



◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.



Technical Specs.:



1) Dimensions(LxWxH): 330 x 150 x 90 mm

2) Net weight: 6.5 KG

3) Max charging voltage(CV): 130 volt

4) Floating voltage: customized

5) Max output current (CC): 15 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by users country

10) Output connector type: customized by applications

11) Enclosure: Aluminum



Output series: 2,000W    Size: 330×150×90 mm     Net weight: 6.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching



AC Input:

110 / 230V



Frequency:

47~63HZ



VL12100L 12V LiFePO4 Battery   14.6V 100A CC5~8%
VL12100 12V Lead-acid Battery 13.5V 14.7V 100A CC20%
VL14100 14V AGM Battery 13.5V 14.4V 100A CC20%
VL16100L 16V LiFePO4 Battery   18.2V 100A CC5~8%
VL2460LM 24V Li-MnO2 Battery   29.4V 60A CC5~8%
VL2460L 24V LiFePO4 Battery   29.2V 60A CC5~8%
VL2460 24V Lead-acid Battery 27.6V 29.4V 60A CC20%
VL3640LM 36V Li-MnO2 Battery   42V 40A CC5~8%
VL3640L 36V LiFePO4 Battery   43.8V 40A CC5~8%
VL3640 36V Lead-acid Battery 41.4V 44.1V 40A CC20%
VL4830LM 48V Li-MnO2 Battery   54.6V 30A CC5~8%
VL4830L 48V LiFePO4 Battery   43.8V 30A CC5~8%
VL4830 48V Lead-acid Battery 55.2V 58.8V 30A CC20%
VL6025L 60V LiFePO4 Battery   73V 25A CC5~8%
VL6025 60V Lead-acid Battery 67.5V 73.5V 25A CC20%
VL7220L 72V LiFePO4 Battery   87.6V 20A CC5~8%
VL7220 72V Lead-acid Battery 81V 88.2V 20A CC20%
  VL8418L 84V LiFePO4 Battery   102.2V 18A CC5~8%
  VL8418 84V Lead-acid Battery 94.5V 102.9V 18A CC20%
  VL9616L 96V LiFePO4 Battery   116.8V 16A CC5~8%
  VL9616 96V Lead-acid Battery 108V 117.6V 16A CC20%
Note: customized input / output / plug type / connectors are available.



Battery Knowledge



Q. What do the abbreviations MF, GEL and AGM mean?
A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.



Q. What do the abbreviations LiFePO4, Li ion, Li MnO2 and LiCoO2 mean?

A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.



Battery Charger Knowledge



Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.



Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.



Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.



About DANL Company



Q. Are you a factory or trading company?

A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.



Q. What's about the warranty for Danl battery chargers?

Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.



Q. Do you accept OEM order?

A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.



Q. What is about the lead time for an order?

A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.



Q. What certification do you have?

A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.



Q. Why choose your smart battery chargers?

A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
