|Place of Origin:||CHINA|
|Minimum Order Quantity:||10 pcs|
|Packaging Details:||10 pcs/carton|
|Delivery Time:||7-10 days|
|Payment Terms:||TT, Paypal|
|Net Weight:||1.2 KG||Input Volt Range:||110 - 230 Vac|
|DC Output Volts:||Rated 12V, Max 14.6V||Floating Volts:||13.5 Vdc|
|DC Charge Current:||10 Amps Max||Manufacturer:||DANL|
|Charge Battery:||12V Lithium Racing Battery|
automotive lithium battery charger,
rac car battery charger

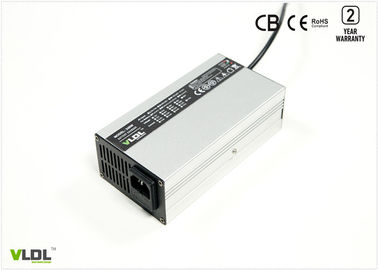

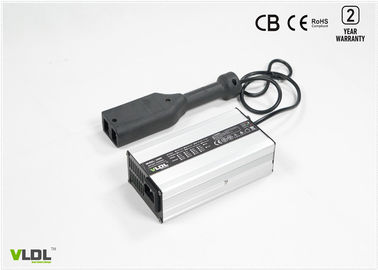

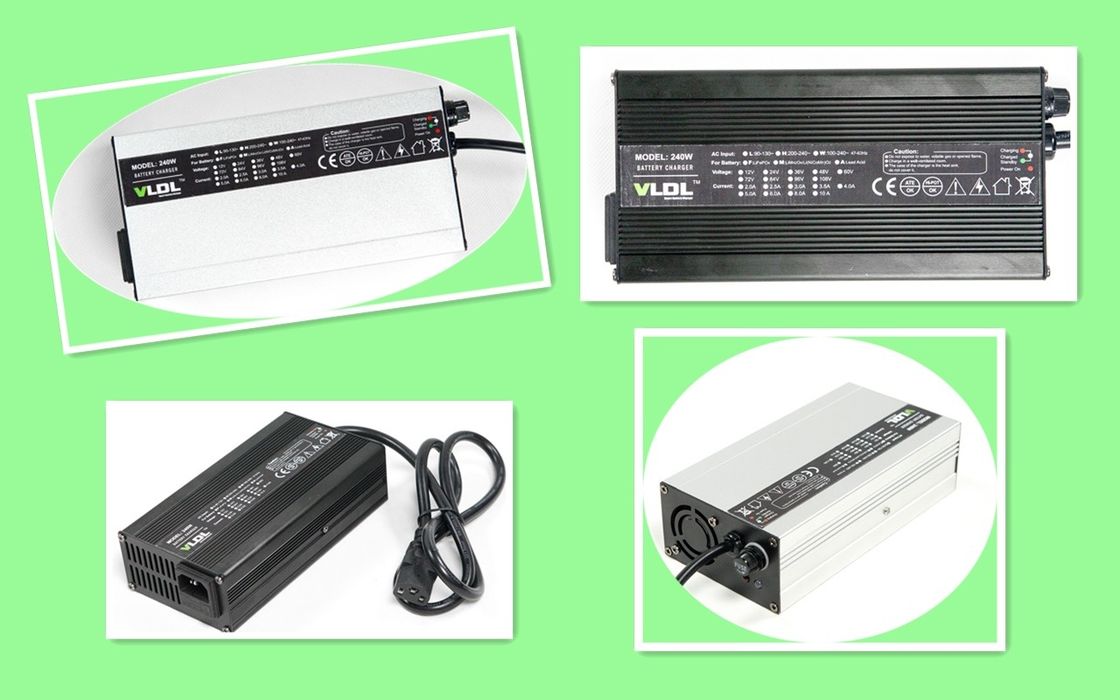

Automatic 12 Volts Li Racing Battery Charger , 240W Lithium Battery Charger 10 Amps
Designed for 12V Lithium racing battery input with worldwide 110 to 230Vac and rated output voltatge is 12V 10A. Smart max charging voltage is 14.6V for Li batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and pretect your battery life maximumly. High quality, factory price and 2 years warranty.
1) Optional charging methods: Lithium or AGM batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
1) Dimensions(LxWxH): 170 x 90 x 50 MM
2) Net weight: 1.2 KG
3) Max charging voltage(CV): 14.6 volt
4) Floating voltage: customized
5) Max output current (CC): 10 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 / 240 Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
|Output series: 240W Size: 170×90×50 mm Net weight: 1.0 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
|VL1210L||12V LiFePO4 Battery||14.6V||10A||CC5~8%|
|VL1210||12V Lead-acid Battery||13.5V||14.7V||10A||CC20%|
|VL2407LM||24V Li-MnO2 Battery||29.4V||7A||CC5~8%|
|VL2407L||24V LiFePO4 Battery||29.2V||7A||CC5~8%|
|VL2407||24V Lead-acid Battery||27.6V||29.4V||7A||CC20%|
|VL3605LM||36V Li-MnO2 Battery||42V||5A||CC5~8%|
|VL3605L||36V LiFePO4 Battery||43.8V||5A||CC5~8%|
|VL3605||36V Lead-acid Battery||41.4V||44.1V||5A||CC20%|
|VL4804LM||48V Li-MnO2 Battery||54.6V||4A||CC5~8%|
|VL4804L||48V LiFePO4 Battery||43.8V||4A||CC5~8%|
|VL4804||48V Lead-acid Battery||55.2V||58.8V||4A||CC20%|
|VL6003L||60V LiFePO4 Battery||73V||3A||CC5~8%|
|VL6003||60V Lead-acid Battery||67.5V||73.5V||3A||CC20%|
|VL72025L||72V LiFePO4 Battery||87.6V||2.5A||CC5~8%|
|VL72025||72V Lead-acid Battery||81V||88.2V||2.5A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
Q. Are you a factory or trading company?
A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.
Q. What's about the warranty for Danl battery chargers?
Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.
Q. Do you accept OEM order?
A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.
Q. What is about the lead time for an order?
A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.
Q. What certification do you have?
A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.
Q. Why choose your smart battery chargers?
A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
