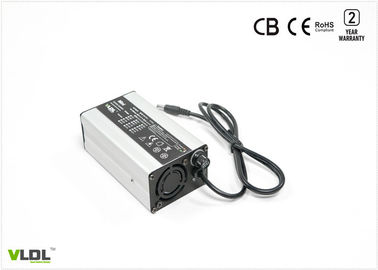

12 Volts Sealed Lead - Acid / AGM / GEL / Silicon Battery Charger For Car Battery

12 Volts Sealed Lead - Acid / AGM / GEL / Silicon Battery Charger For Car Battery

  • 12 Volts Sealed Lead - Acid / AGM / GEL / Silicon Battery Charger For Car Battery
  • 12 Volts Sealed Lead - Acid / AGM / GEL / Silicon Battery Charger For Car Battery
  • 12 Volts Sealed Lead - Acid / AGM / GEL / Silicon Battery Charger For Car Battery
  • 12 Volts Sealed Lead - Acid / AGM / GEL / Silicon Battery Charger For Car Battery
12 Volts Sealed Lead - Acid / AGM / GEL / Silicon Battery Charger For Car Battery
Product Details:
Place of Origin: CHINA
Brand Name: VLDL
Certification: CE, ROHS
Model Number: VL1204
Payment & Shipping Terms:
Minimum Order Quantity: 12 pcs
Price: Negotiable
Packaging Details: 12 pcs / carton
Delivery Time: 7 - 10 days
Payment Terms: TT, Paypal
Supply Ability: 1,000 pcs / month
Contact Now
Detailed Product Description
Case Material: Aluminum Size: 120*69*45 MM
Net Weight: 0.6 KG Input Volt: 110 - 230 Vac
Constant Current: 4 Amps Constant Voltage: 14.4V / 14.7V
Output Power: 60 Watts Applied To: 12V Automotive Lead Acid Batteries
High Light:

car lead acid battery charger

,

battery trickle charger

12 Volts Sealed Lead - Acid / AGM / GEL / Silicon Battery Charger For Car Battery



Brief Description:



Sealed lead acid battery charger 12 volts 4 amps, input with worldwide 110 to 230Vac and rated output voltatge is 12V 4A. Smart max charging voltage is 14.7V for SLA type batteries or AGM batteries. Intelligent 4 stages charging with pre-charge, CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and pretect your battery life maximumly. High quality, factory price and 2 years warranty.



Features

1) Optional charging methods: Lithium or SLA / AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz ~ 60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.



Technical Specs.:

1) Dimensions(LxWxH): 120 x 69 x 45 mm

2) Net weight: 0.6 KG

3) Max charging voltage(CV): 14.7 volt

4) Floating voltage: customized

5) Max output current (CC): 4 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by users country

10) Output connector type: customized by applications

11) Enclosure: Aluminum



Output series: 120W Mini     Size: 120×69×45 mm      Net weight: 0.6 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

85~264V



Frequency:

47~63HZ



VL1206L 12V LiFePO4 Battery   14.6V 6A CC5~8%
VL1206 12V Lead-acid Battery 13.5V 14.7V 6A CC20%
VL2404LM 24V Li-MnO2 Battery   29.4V 4A CC5~8%
VL2404 24V Lead-acid Battery 27.6V 29.4V 4A CC20%
VL3603L 36V Li-MnO2 Battery   42V 3A CC5~8%
VL3602 36V Lead-acid Battery 41.4V 44.1V 2A CC20%
VL4802LM 48V Li-MnO2 Battery   54.6V 2A CC5~8%
VL4802 48V Lead-acid Battery 55.2V 58.8V 2A CC20%
Note: customized input / output / plug type / connectors are available.



Battery Knowledge



Q. What do the abbreviations MF, GEL and AGM mean?
A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.



Q. What do the abbreviations LiFePO4, Li-ion, Li-MnO2 and LiCoO2 mean?

A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.



Battery Charger Knowledge



Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.



Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.



Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.



12V 20A sealed lead acid battery charger with max 14.7V CV and 20 amps CC charging, for Euro and US market
