|Place of Origin:||China|
|Model Number:||VL2412 / VL2412L|
|Minimum Order Quantity:||12 pcs|
|Packaging Details:||Carton, 12pcs/carton|
|Payment Terms:||T/T, Paypal|
|Net Weight:||1.5 KG||Color:||Silver Or Black|
|Battery Applied:||24V Lithium / SLA Battery||AC Input:||110 - 230Vac, 50 / 60 Hz|
|DC Output:||Rated 24V 12 Amps||EV Applied:||Electric Scooters|
scooter battery charger,
electric bike charger 24v

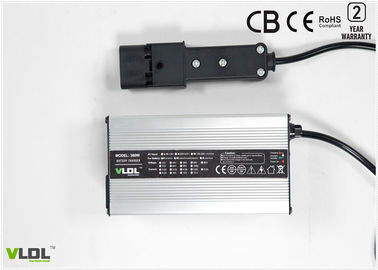

High Charging Current 12 Amps 24 Volts Charger Fast Trickle Charging For Electric Scooters
High charging current 12 amps 24 volts charger for electric scooters, fast and trickle charging. Max 29.2V or 29.4V charging voltage for 24V SLA, AGM, GEL, lithium (LiFePO4, Li-ion, LiMO2) battery packs. Automatic 4 steps transition of pre-charge, CC, CV and floating / trickle or shut off. Worldwide input with 110 - 240Vac, use it anywhere. Aluminum housing, light weight and portable. 2 years warranty, high quality.
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
1) Dimensions(LxWxH): 170 x 90 x 63 mm
2) Net weight: 1.5 KG
3) Max charging voltage(CV): 29.4 / 29.2 volts
4) Floating voltage: customized
5) Max output current (CC): 12 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 240Vac worldwide
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
|Output series: 360W Size: 170×90×63 mm Net weight: 1.5 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
110 / 230V
|VL1220L||12V LiFePO4 Battery||14.6V||20A||CC5~8%|
|VL1220||12V Lead-acid Battery||13.5V||14.7V||20A||CC20%|
|VL2412LM||24V Li-MnO2 Battery||29.4V||12A||CC5~8%|
|VL2412L||24V LiFePO4 Battery||29.2V||12A||CC5~8%|
|VL2412||24V Lead-acid Battery||27.6V||29.4V||12A||CC20%|
|VL3608LM||36V Li-MnO2 Battery||42V||8A||CC5~8%|
|VL3608L||36V LiFePO4 Battery||43.8V||8A||CC5~8%|
|VL3608||36V Lead-acid Battery||41.4V||44.1V||8A||CC20%|
|VL4805LM||48V Li-MnO2 Battery||54.6V||5A||CC5~8%|
|VL4805L||48V LiFePO4 Battery||43.8V||5A||CC5~8%|
|VL4805||48V Lead-acid Battery||55.2V||58.8V||5A||CC20%|
|VL6004L||60V LiFePO4 Battery||73V||4A||CC5~8%|
|VL6004||60V Lead-acid Battery||67.5V||73.5V||4A||CC20%|
|VL7203L||72V LiFePO4 Battery||87.6V||3A||CC5~8%|
|VL7203||72V Lead-acid Battery||81V||88.2V||3A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
We have passed Quality Management ISO 9001:2015 and Environmental Management ISO 14001:2015. We control our quality as following 6 steps:
Step 1 Using Famous Brand Components: Only use famous brand and high quality components and choose suppliers with certifications. Guarantee no low quality components get into our warehouse.
Step 2 Inspecting Components: Inspect every batch of incoming components.
Step 3 Qualified Workers Assembling: 2 year qualified workers assemble the battery chargers, high efficiency and low failure rate.
Step 4 Smart Aging System: Using smart aging system to do burn-in test with full load for at least two hours. This system will age battery chargers automatically after setting in computer and record every aging information. Guarantee every battery charger’s components under the good condition.
Step 5 Latest ATE Battery Charger Test System: At last, we do final test by our latest ATE Battery Charger Test System before packing. This system will do more than 10 performances automatic testing and check all functions automatically, recording test data with very fast and precise way, tracking test result, reading, comparing and filing all data, easy to control. Every battery charger has an unique tracking code, when there is a fault on battery charger, we just scan the code and track its manufacturing information.
Step 6 Random Test Before Shipping: Before shipping, we will choose two chargers randomly and test again. This shipment can be released for shipping if there is no problem at random test.
