|Place of Origin:||CHINA|
|Model Number:||VL4805 / VL4805L|
|Minimum Order Quantity:||12 pcs|
|Packaging Details:||12 pcs / carton|
|Delivery Time:||7-10 days|
|Payment Terms:||TT, Paypal|
|Case Material:||Aluminum||Size:||170*90*63 Mm|
|Net Weight:||1.5 KG||Input Volt:||110 - 230Vac|
|Output:||48V 5A, Max 54.6V / 58.4V||Applied Battery:||LiFePO4, LiMO2, Li - Ion, Li Polymer|
|Color:||Black Or Silver||Output Power:||360W Max|
|Charging EV:||Electric Scooters, Electric Motorcycles|
charger battery lithium,
lithium battery smart charger

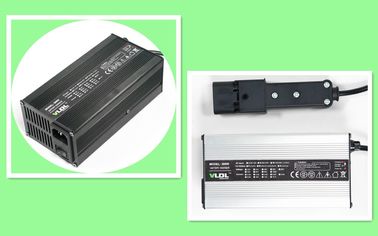

Lithium battery charger 48V 5A, designed for electric scooters and electric motorcycles
Lithium battery charger 48V 5A, designed for electric scooters and electric motorcycles, smart charge LiFePO4 / Li ion / LiMO2 batteries. Input with 110 - 240 Vac and charging with 54.6 Vdc or 58.4 Vdc 5 amps, max 360 watts output power. Smart 4 steps charging: pre charge, CC, CV and automatic shut off and maximumly protecting your expensive lithium batteries. Small size, portable for electric scooters, electric bikes and electric motorcycles. We can customize input and output by your battery specifications.
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz ~ 60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre charging, CC, CV, Absorption, Float or Cut - off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: short circuit, over voltage, over temperature, reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
1) Dimensions(LxWxH): 170 x 90 x 63 mm
2) Net weight: 1.5 KG
3) Max charging voltage(CV): 54.6 / 58.4 volt
4) Floating voltage: customized
5) Max output current (CC): 5 amps
6) Charging method: automatic pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 240Vac universal
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
Related Charger Model of 360W:
|Output series: 360W Size: 170×90×63 mm Net weight: 1.3 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
110 / 230V
|VL1220L||12V LiFePO4 Battery||14.6V||20A||CC5~8%|
|VL1220||12V Lead-acid Battery||13.5V||14.7V||20A||CC20%|
|VL2412LM||24V Li-MnO2 Battery||29.4V||12A||CC5~8%|
|VL2412L||24V LiFePO4 Battery||29.2V||12A||CC5~8%|
|VL2412||24V Lead-acid Battery||27.6V||29.4V||12A||CC20%|
|VL3608LM||36V Li-MnO2 Battery||42V||8A||CC5~8%|
|VL3608L||36V LiFePO4 Battery||43.8V||8A||CC5~8%|
|VL3608||36V Lead-acid Battery||41.4V||44.1V||8A||CC20%|
|VL4805LM||48V Li-MnO2 Battery||54.6V||5A||CC5~8%|
|VL4805L||48V LiFePO4 Battery||43.8V||5A||CC5~8%|
|VL4805||48V Lead-acid Battery||55.2V||58.8V||5A||CC20%|
|VL6004L||60V LiFePO4 Battery||73V||4A||CC5~8%|
|VL6004||60V Lead-acid Battery||67.5V||73.5V||4A||CC20%|
|VL7203L||72V LiFePO4 Battery||87.6V||3A||CC5~8%|
|VL7203||72V Lead-acid Battery||81V||88.2V||3A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre charge, CC, CV and Floating / shut - off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.
VLDL chargers have worldwide input voltage 110 - 240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.
VLDL smart battery chargers are widely applied to electric vehicles including e - bikes, e - scooters, e - mobility, e - skateboards, e - motorcycles, e - golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.
