|Place of Origin:||CHINA|
|Model Number:||VL2405 / VL2405L|
|Minimum Order Quantity:||12pcs|
|Delivery Time:||7-10 days|
|Payment Terms:||TT, Paypal|
|Housing Material:||Aluminum||Size:||155*90*50 MM|
|Net Weight:||0.9 KG||Input Volt:||110 - 230 Vac, Universal|
|Output:||24V 5A, Max 29.4 Vdc||Applied Battery:||SLA, AGM, SILICON, LiFePO4, LiMO, Li - Ion|
|Color:||Black Or Silver|
li ion battery pack charger,
lithium battery smart charger

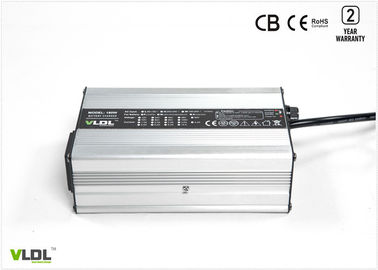

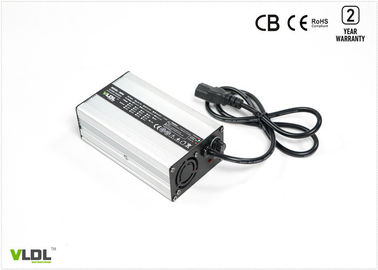

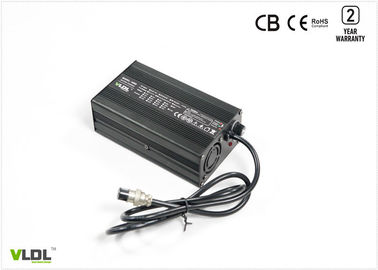

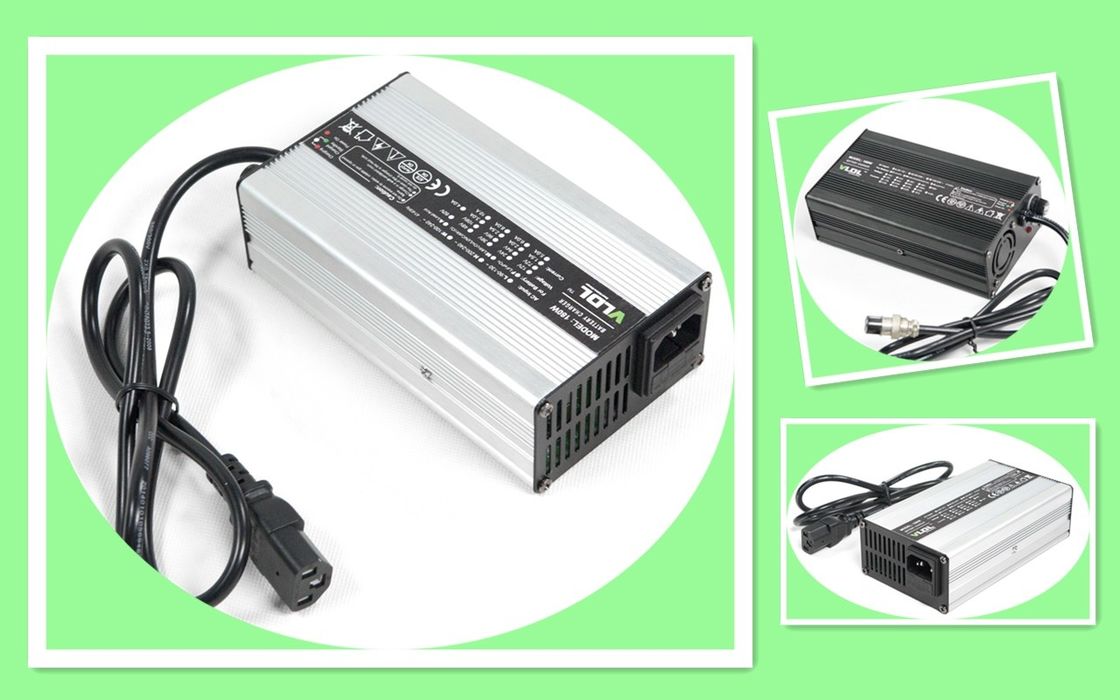

24 Volts 5 Amps LiFePO4 Battery Charger CE And RoHS Standard With 110 - 230V Input
24V 5A with universal 110 - 230 vac input. Black or silver color aluminum casing. Rated ouput 24V 5A and max charging voltage is 29.4V. Intelligent / smart battery charger.
As a swtiching mode technology battery charger, it has small size and light weight, much portable for user. This charger has intelligent 4 steps charging method (pre charge, CC, CV, auto. shut off) and charge your lithium battery types inclduing LiFePO4, Li ion, LiMO2 batteries with fast speed and high efficiency. It is a fully automatic charging charger, user just power it on and connect it to battery sorket and then leave it alone.
Applied to 24V battery powered electric mobility scooters and electric skateboards.
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
1) Dimensions(LxWxH): 155x90x50 mm
2) Net weight: 0.9 KG
3) Max charging voltage(CV): 29.4 volt
4) Floating voltage: customized
5) Max output current (CC): 5 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 240Vac
8) AC input freq.: 50/60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
|Output series: 180W Size: 155×90×50 mm Net weight: 0.9 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
|VL1208L||12V LiFePO4 Battery||14.6V||8A||CC5~8%|
|VL1208||12V Lead-acid Battery||13.5V||14.7V||8A||CC20%|
|VL2405LM||24V Li-MnO2 Battery||29.4V||5A||CC5~8%|
|VL2405||24V Lead-acid Battery||27.6V||29.4V||5A||CC20%|
|VL3604L||36V Li-MnO2 Battery||42V||4A||CC5~8%|
|VL3604||36V Lead-acid Battery||41.4V||44.1V||4A||CC20%|
|VL4803LM||48V Li-MnO2 Battery||54.6V||3A||CC5~8%|
|VL4803||48V Lead-acid Battery||55.2V||58.8V||3A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
Q. Are you a factory or trading company?
A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.
Q. What's about the warranty for Danl battery chargers?
Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.
Q. Do you accept OEM order?
A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.
Q. What is about the lead time for an order?
A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.
Q. What certification do you have?
A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.
Q. Why choose your smart battery chargers?
A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
