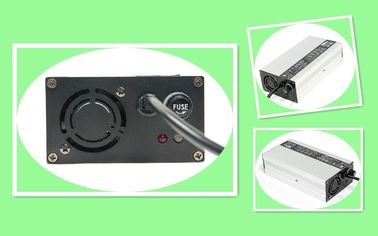

48 Volt 54.6V 4A Electric Scooter Lithium Battery Charger Size 170*90*50 MM

48 Volt 54.6V 4A Electric Scooter Lithium Battery Charger Size 170*90*50 MM

    • 48 Volt 54.6V 4A Electric Scooter Lithium Battery Charger Size 170*90*50 MM
    • 48 Volt 54.6V 4A Electric Scooter Lithium Battery Charger Size 170*90*50 MM
    • 48 Volt 54.6V 4A Electric Scooter Lithium Battery Charger Size 170*90*50 MM
    • 48 Volt 54.6V 4A Electric Scooter Lithium Battery Charger Size 170*90*50 MM
    • 48 Volt 54.6V 4A Electric Scooter Lithium Battery Charger Size 170*90*50 MM
  • 48 Volt 54.6V 4A Electric Scooter Lithium Battery Charger Size 170*90*50 MM

    Product Details:

    Place of Origin: CHINA
    Brand Name: VLDL
    Certification: CE, ROHS
    Model Number: VL4804L

    Payment & Shipping Terms:

    Minimum Order Quantity: 12 pcs
    Price: Negotiable
    Packaging Details: 12 pcs / carton
    Delivery Time: 7-10 days
    Payment Terms: TT, Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Case: Aluminum Size: 170*90*50 MM
    Input Voltage: 110V Or 230V Input Plug: US, EU, UK, India Etc.
    Output: 48V 4A, Max 54.6V Applied Battery: Lithium-ion Battery
    Output Connector: XLR, RCA, Clips, Anderson Etc. Output Power: 240W Max
    Charging EV: Electric Scooters

    48V 54.6V 4A Electric Scooter Battery Charger, designed for Lithium battery, only 1.2KG



    Brief Description:

    Electric scooter 48V 4A lithium battery charger, smart charge LiFePO4 / Li ion / LiMO2 batteries. Input with 110 or 240 Vac and charging with 54.6 Vdc or 58.4 Vdc 4 amps, max 240 watts output power. Smart 4 steps charging: pre charge, CC, CV and automatic shut off and maximumly protecting your expensive lithium batteries. Small size, portable for electric scooters, electric bikes and electric skateboard. We can customize input and output by your battery specifications. Small size, light weigh and portable.



    Technical Specs.:

    1) Dimensions(LxWxH): 170 x 90 x 50 mm

    2) Net weight: 1.2 KG

    3) Max charging voltage(CV): 54.6 / 58.4 volt

    4) Floating voltage: /

    5) Max output current (CC): 4 amps

    6) Charging method: automatic pre-charge, CC, CV, floating / trickle or shut off

    7) AC input voltage: 110 or 240Vac

    8) AC input freq.: 50 / 60 Hz

    9) AC plug: US, EU, UK, AU, India etc.

    10) Output connector type: XLR, RCA, Anderson, Clips etc.

    11) Enclosure: Aluminum



    Features:

    ◆ Advanced high frequency switching mode power supply technology.

    ◆ DC output isolated from AC input.

    ◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz ~ 60Hz.

    ◆ Charging parameters are insensitive to the AC input line voltage variations.

    ◆ Completely automatic battery charging: Pre charging, CC, CV, Absorption, Float or Cut - off.

    ◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

    ◆ Possibility to customize charging curve for request.

    ◆ Protections: short circuit, over voltage, over temperature, reverse Polarity.

    ◆ Efficiency > 95%.

    ◆ Forced ventilation with fans.

    ◆ 100% full load burn-in test.

    ◆ Aluminum casing, light weight, portable.





    Output series: 240W      Size: 170×90×50 mm      Net weight: 1.2 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching

    AC Input:

    110 or 230V



    Frequency:

    47~63HZ



    VL1210L 12V LiFePO4 Battery   14.6V 10A CC5~8%
    VL1210 12V Lead-acid Battery 13.5V 14.7V 10A CC20%
    VL2407LM 24V Li-MnO2 Battery   29.4V 7A CC5~8%
    VL2407L 24V LiFePO4 Battery   29.2V 7A CC5~8%
    VL2407 24V Lead-acid Battery 27.6V 29.4V 7A CC20%
    VL3605LM 36V Li-MnO2 Battery   42V 5A CC5~8%
    VL3605L 36V LiFePO4 Battery   43.8V 5A CC5~8%
    VL3605 36V Lead-acid Battery 41.4V 44.1V 5A CC20%
    VL4804LM 48V Li-MnO2 Battery   54.6V 4A CC5~8%
    VL4804L 48V LiFePO4 Battery   43.8V 4A CC5~8%
    VL4804 48V Lead-acid Battery 55.2V 58.8V 4A CC20%
    VL6003L 60V LiFePO4 Battery   73V 3A CC5~8%
    VL6003 60V Lead-acid Battery 67.5V 73.5V 3A CC20%
    VL72025L 72V LiFePO4 Battery   87.6V 2.5A CC5~8%
    VL72025 72V Lead-acid Battery 81V 88.2V 2.5A CC20%
    Note: customized input / output / plug type / connectors are available.



    Product Information



    Overview



    VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre charge, CC, CV and Floating / shut - off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.



    VLDL chargers have worldwide input voltage 110 - 240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.



    VLDL smart battery chargers are widely applied to electric vehicles including e - bikes, e - scooters, e - mobility, e - skateboards, e - motorcycles, e - golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.



    48 Volt 54.6V 4A Electric Scooter Lithium Battery Charger Size 170*90*50 MM
