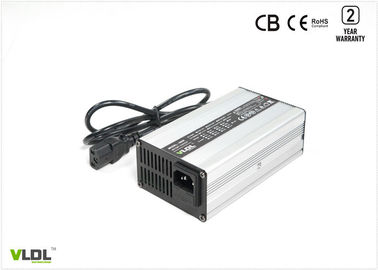

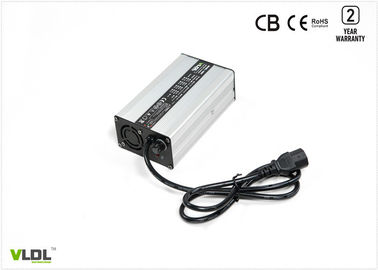

24v 3 Amp Medical Mobility Scooter Automatic Smart Charger XLR Connection 135*90*50 MM

24v 3 Amp Medical Mobility Scooter Automatic Smart Charger XLR Connection 135*90*50 MM

    • 24v 3 Amp Medical Mobility Scooter Automatic Smart Charger XLR Connection 135*90*50 MM
    • 24v 3 Amp Medical Mobility Scooter Automatic Smart Charger XLR Connection 135*90*50 MM
    • 24v 3 Amp Medical Mobility Scooter Automatic Smart Charger XLR Connection 135*90*50 MM
    • 24v 3 Amp Medical Mobility Scooter Automatic Smart Charger XLR Connection 135*90*50 MM
  • 24v 3 Amp Medical Mobility Scooter Automatic Smart Charger XLR Connection 135*90*50 MM

    Product Details:

    Place of Origin: China
    Brand Name: VLDL
    Certification: CE, ROHS
    Model Number: DL2403, DL2403L

    Payment & Shipping Terms:

    Minimum Order Quantity: 12/pcs
    Price: Negotiable
    Packaging Details: Carton, 12pcs/carton
    Payment Terms: T/T, Paypal
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Size: 135*90*50 MM
    Net Weight: 0.8 KG Color: Silver Or Black
    Applied To: 24V Lithium Or Lead Acid Battery Input Volt: 110 - 230Vac
    Output: Rated 24V 3Amps Applied To EV: Electric Medical Mobility Scooters
    Max Output Power: 120W

    24v 3 Amp Medical Mobility Scooter Automatic Smart Charger XLR Connection 135*90*50 MM



    Brief Description:



    24v 3 amps medical mobility scooters automatic smart charger can charge with intelligent 4 steps, pre-charge, CC, CV and floating. Fast and protective charging for your medical sealed lead acid battery or lithium type battery packs. Input worldwide input 110-240Vac, automatic switch between 110V and 240V by your local house voltage. Various protections with high efficiency output power. Max output 29.4V or 29.2V customized by your battery types. Original China battery charger factory, high quality and factory price.



    Features:



    ◆ Advanced high frequency switching mode power supply technology.

    ◆ DC output isolated from AC input.

    ◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.

    ◆ Charging parameters are insensitive to the AC input line voltage variations.

    ◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

    ◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

    ◆ Possibility to customize charging curve for request.

    ◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

    ◆ Efficiency > 95%.

    ◆ Forced ventilation with fans.

    ◆ 100% full load burn-in test.

    ◆ Aluminum casing, light weight, portable.



    Technical Specs.:



    1) Dimensions(LxWxH): 135 x 90 x 50 mm

    2) Net weight: 0.8 KG

    3) Max charging voltage(CV): 29.4 volt

    4) Floating voltage: customized

    5) Max output current (CC): 3 amps

    6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

    7) AC input voltage: 110 - 240Vac

    8) AC input freq.: 50 / 60 Hz

    9) AC plug: customized by users country

    10) Output connector type: customized by applications

    11) Enclosure: Aluminum



    Output series: 120W     Size: 135×90×50 mm      Net weight: 0.8 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching

    AC Input:

    85~264V



    Frequency:

    47~63HZ



    VL1206L 12V LiFePO4 Battery   14.6V 6A CC5~8%
    VL1206 12V Lead-acid Battery 13.5V 14.7V 6A CC20%
    VL2404LM 24V Li-MnO2 Battery   29.4V 4A CC5~8%
    VL2404 24V Lead-acid Battery 27.6V 29.4V 4A CC20%
    VL3603L 36V Li-MnO2 Battery   42V 3A CC5~8%
    VL3602 36V Lead-acid Battery 41.4V 44.1V 2A CC20%
    VL4802LM 48V Li-MnO2 Battery   54.6V 2A CC5~8%
    VL4802 48V Lead-acid Battery 55.2V 58.8V 2A CC20%
    Note: customized input / output / plug type / connectors are available.



    24v 3 Amp Medical Mobility Scooter Automatic Smart Charger XLR Connection 135*90*50 MM
