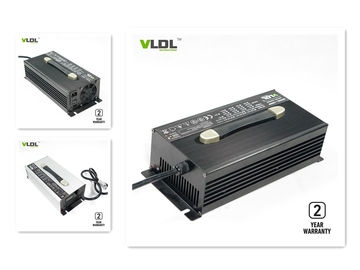

Black Sealed Lead Acid Battery Charger 48V 30A Max 58.8V CC CV CE RoHS Certified

Black Sealed Lead Acid Battery Charger 48V 30A Max 58.8V CC CV CE RoHS Certified

    • Black Sealed Lead Acid Battery Charger 48V 30A Max 58.8V CC CV CE RoHS Certified
    • Black Sealed Lead Acid Battery Charger 48V 30A Max 58.8V CC CV CE RoHS Certified
    • Black Sealed Lead Acid Battery Charger 48V 30A Max 58.8V CC CV CE RoHS Certified
    • Black Sealed Lead Acid Battery Charger 48V 30A Max 58.8V CC CV CE RoHS Certified
    • Black Sealed Lead Acid Battery Charger 48V 30A Max 58.8V CC CV CE RoHS Certified
  • Black Sealed Lead Acid Battery Charger 48V 30A Max 58.8V CC CV CE RoHS Certified

    Product Details:

    Place of Origin: CHINA
    Brand Name: VLDL
    Certification: CE, ROHS
    Model Number: VL4830

    Payment & Shipping Terms:

    Minimum Order Quantity: 4 pcs
    Price: Negotiable
    Packaging Details: 4 pcs / carton
    Delivery Time: 7 - 10 days
    Payment Terms: TT, Paypal
    Supply Ability: 1,000 pcs / month
    Contact Now
    Detailed Product Description
    Case: Aluminum Dimensions: 330*150*90 MM
    N.W: 6.5 KG Output: Rated 48V 30A, Max 58.8V
    Case Color: Black Or Silver Battery Types: Lead Acid Battery
    Charging Steps: CC, CV, Floating Applied To EV: E-cars, E Forklifts
    Brand: VLDL

    Lead Acid Battery Charger 48V 30A, Max 58.8V CC CV Smart Charging, CE RoHS Certified with Two Years Warranty



    Brief Description:

    Lead acid battery charger 48 volts 30 amps with aluminum housing and small size. Input with worldwide 110Vac or 240Vac. Max charigng voltage is 54.6V or 58.4V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or 57.6V / 58.8V for lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 12V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.



    Features

    Optional charging methods: Lithium or lead acid batteries.

    Advanced high frequency switching mode power supply technology.

    DC output isolated from AC input.

    Input 110Vac or 230Vac, 50Hz~60Hz.

    Charging parameters are insensitive to the AC input line voltage variations.

    Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

    Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

    Aluminum casing, light weight, portable.

    100% full load burn-in test.

    2 years warranty.



    Technical Specs.:



    1) Dimensions(LxWxH): 330 x 150 x 90 MM

    2) Net weight: 6.5 KG

    3) Max charging voltage(CV): 58.8 volt

    4) Floating voltage: 55.2Vdc

    5) Max output current (CC): 30 amps

    6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

    7) AC input voltage: 110 / 240Vac

    8) AC input freq.: 50 / 60 Hz

    9) AC plug: customized by users country

    10) Output connector type: customized by applications

    11) Enclosure: Aluminum



    Output series: 1,800W     Size: 330×150×90 mm     Net weight: 6.5 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching



    AC Input:

    110 / 230V



    Frequency:

    47~63HZ



    VL12100L 12V LiFePO4 Battery   14.6V 100A CC5~8%
    VL12100 12V Lead-acid Battery 13.5V 14.7V 100A CC20%
    VL14100 14V AGM Battery 13.5V 14.4V 100A CC20%
    VL16100L 16V LiFePO4 Battery   18.2V 100A CC5~8%
    VL2460LM 24V Li-MnO2 Battery   29.4V 60A CC5~8%
    VL2460L 24V LiFePO4 Battery   29.2V 60A CC5~8%
    VL2460 24V Lead-acid Battery 27.6V 29.4V 60A CC20%
    VL3640LM 36V Li-MnO2 Battery   42V 30A CC5~8%
    VL3640L 36V LiFePO4 Battery   43.8V 30A CC5~8%
    VL3640 36V Lead-acid Battery 41.4V 44.1V 30A CC20%
    VL4830LM 48V Li-MnO2 Battery   54.6V 30A CC5~8%
    VL4830L 48V LiFePO4 Battery   43.8V 30A CC5~8%
    VL4830 48V Lead-acid Battery 55.2V 58.8V 30A CC20%
    VL6025L 60V LiFePO4 Battery   73V 25A CC5~8%
    VL6025 60V Lead-acid Battery 67.5V 73.5V 25A CC20%
    VL7220L 72V LiFePO4 Battery   87.6V 20A CC5~8%
    VL7220 72V Lead-acid Battery 81V 88.2V 20A CC20%
      VL8415L 84V LiFePO4 Battery   102.2V 15A CC5~8%
      VL8415 84V Lead-acid Battery 94.5V 102.9V 15A CC20%
      VL9613L 96V LiFePO4 Battery   116.8V 13A CC5~8%
      VL9613 96V Lead-acid Battery 108V 117.6V 13A CC20%
    Note: customized input / output / plug type / connectors are available.
