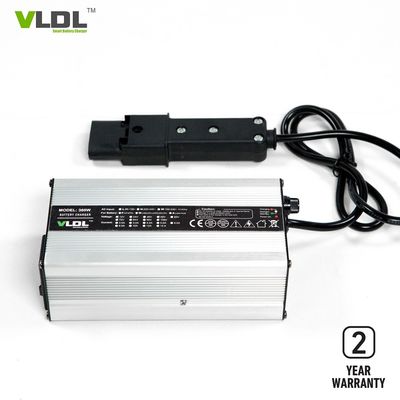

CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery

CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery

    • CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery
    • CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery
    • CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery
    • CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery
    • CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery
  • CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery

    Product Details:

    Place of Origin: China
    Brand Name: VLDL
    Model Number: VL6006

    Payment & Shipping Terms:

    Minimum Order Quantity: 12 pcs
    Price: Negotiable
    Packaging Details: Carton, 12pcs / carton
    Delivery Time: 7-10 days
    Payment Terms: T/T, Paypal
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Dimension: 170*90*50 MM
    Net Weight: 1.2 KG Color: Silver Or Black
    Applied To: 60V Lead-acid Battery Input Volt: Single 230V
    Max Output: 73.5Vdc Applied To EV: Electric Scooters / Motorcycles
    Charging Method: Automatic CC And CV Warranty: 2 Years
    High Light:

    6A 60v Lead Acid Battery Charger

    ,

    CV 60v Lead Acid Battery Charger

    ,

    60v CC CV Battery Charger

    CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery



    Specification:
    Input voltage: AC 180~264V 50/60Hz
    Output voltage: DC 73.5V
     Max charging current: 6A

     Charging method: automatic CC CV and Floating
    • Dimensions (mm): 170*90*50mm
     Gross weight: 1.5kg



    Features:
    • Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
    • Constant big charging current for faster charging;
    • automatically charging ending with Cut-Off output;
    • Aluminum case with Fan Cooling
    It can charge any 60V SLA/VRLA/GEL/AGM battery with capacity 60-120Ah



    Quick Detail:
    Brand Name:VLDL
    Model Number: VL6006
    Use: 60V Lead-Acid/AGM/GEL Battery
    Type: Smart
    Place of Origin:Guangzhou China (Mainland)
    Battery charger: automatic battery charger 58.8V
    Certificate: CE FCC ROHS
    Color: Black/Silver
    Shell Material:Aluminium alloy

    Input voltage: AC180~264V 50/60Hz
    Output voltage: 73.5V
    Output current: 6A
    Output power: 500W
    Efficiency:>=85%
    Shock & Vibration: SAEJ1378 Standard

    Charge mode:CC---CV---Float Charge
    Output Connector: Crocodile clip,aviation connector,XLR,Ring terminal,SB50A Plug,customization

    Packaging & Delivery :
    Inner package: white box/polybags/at your request

    Outer package:carton
    Delivery Detail:sample within 5 work days,7~15 days for bulk order

    Specifications:
    Portable fast SLA /AGM /VRLA /GEL charger 48V lead acid battery charger

    Safety protections:
    Over Voltage protection
    Short Circuit protection
    Polarity error protection
    Over power protection

    LED Indicator:
    GREEN Light ON: fully charged or no connected.
     RED Light on: charging in process.



    CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery 0


    Output series: 240W Size: 170×90×50 mm Net weight: 1.0 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching

    AC Input:

    230V



    Frequency:

    47~63HZ



    VL1220L 12V LiFePO4 Battery   14.6V 20A CC5~8%
    VL1220 12V Lead-acid Battery 13.5V 14.7V 20A CC20%
    VL2415LM 24V Li-MnO2 Battery   29.4V 15A CC5~8%
    VL2415L 24V LiFePO4 Battery   29.2V 15A CC5~8%
    VL2415 24V Lead-acid Battery 27.6V 29.4V 15A CC20%
    VL3610LM 36V Li-MnO2 Battery   42V 10A CC5~8%
    VL3610L 36V LiFePO4 Battery   43.8V 10A CC5~8%
    VL3610 36V Lead-acid Battery 41.4V 44.1V 10A CC20%
    VL4808LM 48V Li-MnO2 Battery   54.6V 8A CC5~8%
    VL4808L 48V LiFePO4 Battery   43.8V 8A CC5~8%
    VL4808 48V Lead-acid Battery 55.2V 58.8V 8A CC20%
    VL6006L 60V LiFePO4 Battery   73V 6A CC5~8%
    VL6006 60V Lead-acid Battery 67.5V 73.5V 6A CC20%
    VL7205L 72V LiFePO4 Battery   87.6V 5A CC5~8%
    VL7205 72V Lead-acid Battery 81V 88.2V 5A CC20%
    Note: customized input / output / plug type / connectors are available.
