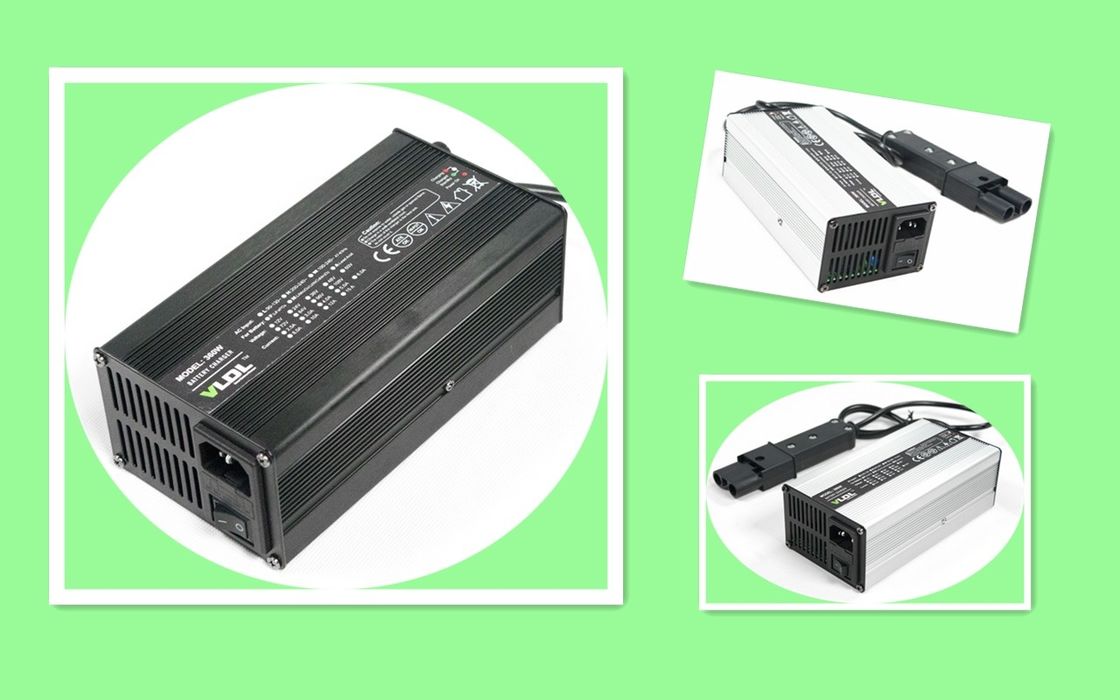

Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght

Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght

    • Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght
    • Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght
    • Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght
    • Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght
    • Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght
  • Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght

    Product Details:

    Place of Origin: China
    Brand Name: VLDL
    Model Number: 6006L

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiable
    Packaging Details: Carton, 10pcs / carton
    Delivery Time: 7-10 days
    Payment Terms: T/T, Paypal
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Dimension: 170*90*50 MM
    Net Weight: 1.2 KG Color: Silver Or Black
    Applied To: 60V Lithium Battery Input Volt: Single 230V
    Max Output: 73.5Vdc Or Customized Applied To EV: Electric Scooters / Motorcycles
    Charging Method: Automatic CC And CV Warranty: 1 Years
    High Light:

    6A 60V Lithium Battery Charger

    ,

    Single 230Vac Lithium Battery Charger

    ,

    Single 230Vac lithium car battery charger

    Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght



    Specification:
    Input voltage: AC 180~264V 50/60Hz
    Output voltage: DC 73V or customized
     Max charging current: 6A

     Charging method: automatic CC CV
    • Dimensions (mm): 170*90*50mm
     Gross weight: 1.5kg



    Features:
    • Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
    • Constant big charging current for faster charging;
    • automatically charging ending with Cut-Off output;
    • Aluminum case with Fan Cooling
    It can charge any 60V LI-ion, LiFePO4, LiMnO2 battery



    Quick Detail:
    Brand Name:VLDL
    Model Number: VL6006
    Use: 60V LI-ion, LiFePO4, LiMnO2 battery
    Type: Smart
    Place of Origin:Guangzhou China (Mainland)
    Battery charger: automatic battery charger 58.8V
    Certificate: CE FCC ROHS
    Color: Black/Silver
    Shell Material:Aluminium alloy

    Input voltage: AC180~264V 50/60Hz
    Output voltage: 73V
    Output current: 6A
    Output power: 500W
    Efficiency:>=85%
    Shock & Vibration: SAEJ1378 Standard

    Charge mode: CC---CV Charge
    Output Connector: Crocodile clip,aviation connector,XLR,Ring terminal,SB50A Plug,customization

    Packaging & Delivery :
    Inner package: white box/polybags/at your request

    Outer package:carton
    Delivery Detail:sample within 5 work days,7~15 days for bulk order

    Specifications:
    Portable fast SLA /AGM /VRLA /GEL charger 48V lead acid battery charger

    Safety protections:
    Over Voltage protection
    Short Circuit protection
    Polarity error protection
    Over power protection

    LED Indicator:
    GREEN Light ON: fully charged or no connected.
     RED Light on: charging in process.



    Single 230Vac 6A 60V Lithium Battery Charger Aluminum Light Wieght 0


    Output series: 240W Size: 170×90×50 mm Net weight: 1.0 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching

    AC Input:

    230V



    Frequency:

    47~63HZ



    VL1220L 12V LiFePO4 Battery   14.6V 20A CC5~8%
    VL1220 12V Lead-acid Battery 13.5V 14.7V 20A CC20%
    VL2415LM 24V Li-MnO2 Battery   29.4V 15A CC5~8%
    VL2415L 24V LiFePO4 Battery   29.2V 15A CC5~8%
    VL2415 24V Lead-acid Battery 27.6V 29.4V 15A CC20%
    VL3610LM 36V Li-MnO2 Battery   42V 10A CC5~8%
    VL3610L 36V LiFePO4 Battery   43.8V 10A CC5~8%
    VL3610 36V Lead-acid Battery 41.4V 44.1V 10A CC20%
    VL4808LM 48V Li-MnO2 Battery   54.6V 8A CC5~8%
    VL4808L 48V LiFePO4 Battery   43.8V 8A CC5~8%
    VL4808 48V Lead-acid Battery 55.2V 58.8V 8A CC20%
    VL6006L 60V LiFePO4 Battery   73V 6A CC5~8%
    VL6006 60V Lead-acid Battery 67.5V 73.5V 6A CC20%
    VL7205L 72V LiFePO4 Battery   87.6V 5A CC5~8%
    VL7205 72V Lead-acid Battery 81V 88.2V 5A CC20%
    Note: customized input / output / plug type / connectors are available.



    Simple Guidelines when Buying a Charger



    1. Choose the correct charger by battery chemistry like lead-acid, li-ion, LiFePO4 etc. Most chargers serve one chemistry only. Make sure that the battery voltage agrees with the charger. Do not charge if different. A lead acid battery charger does not suit for a lithium battery (Li-ion, LiFePO4, LiMnO2 etc.) and a lithium battery charger does not suit for a lead acid battery (AGM, GEL etc.).



    2. The Ah (battery capacity) rating of a battery can be marginally different than specified. Charging a larger battery will take a bit longer than a smaller pack and vice versa. Do not charge if the Ah rating deviates too much (more than 25 percent).



    3. A lead acid charger should have a float charge when fully saturated; a nickel-based charger must switch to trickle charge when full. Lithium battery cannot absorb overcharge and no need of trickle or floating charge. Trickle charge and float charges compensate for the losses incurred by self-discharge.



    4. A high-wattage charger shortens the charge time but there are limitations as to how fast a battery can be charged. For lead acid battery, charging time often 8-12 hours. For lithium battery, charging time is often 3-4 hours. For example, if your lead acid battery 48V100Ah, then you need a 48V 8-12A lead acid battery charger. If your lithium battery is 48V100Ah, you need a 48V 25-30A lithium battery charger.
