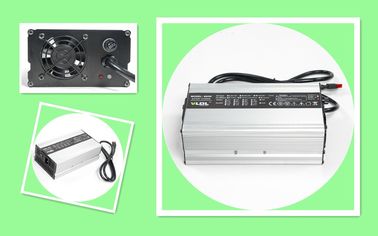

LiFePO4 60V 8A 73V Electric Motorcycle Smart Battery Charger

LiFePO4 60V 8A 73V Electric Motorcycle Smart Battery Charger

  • LiFePO4 60V 8A 73V Electric Motorcycle Smart Battery Charger
  • LiFePO4 60V 8A 73V Electric Motorcycle Smart Battery Charger
  • LiFePO4 60V 8A 73V Electric Motorcycle Smart Battery Charger
  • LiFePO4 60V 8A 73V Electric Motorcycle Smart Battery Charger
  • LiFePO4 60V 8A 73V Electric Motorcycle Smart Battery Charger
LiFePO4 60V 8A 73V Electric Motorcycle Smart Battery Charger
Product Details:
Place of Origin: CHINA
Brand Name: VLDL
Certification: CE, ROHS
Model Number: VL6008L
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: 10 pcs/carton
Delivery Time: 7-10 days
Payment Terms: TT, Paypal
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Case: Aluminum Size: 220*120*70 MM
Net Weight: 2.5 KG Input Volt: 110V Or 230V
Output: Rated 60V 8A Max Charging: 73Vdc 8Amps
Charge Method: Automatic CC CV Suit For: 60V LiFePO4 Battery
Mounting Feet: Available AC To DC: Isolated
Warranty: 2 Years
High Light:

60V Motorcycle Smart Battery Charger

,

8A Motorcycle Smart Battery Charger

Electric motorcycle smart battery charger 60V 8A max 73V CC CV charge for LiFePO4 battery



Technical Specs.:

1) Dimensions(LxWxH): 220 x 120 x 70 mm

2) Net weight: 2.5 KG

3) Max charging voltage(CV): 73Vdc

4) Floating voltage: customized

5) Max output current (CC): 8 amps

6) Charging method: automatic CC, CV

7) AC input voltage: 110V or 230V

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by users country

10) Output connector type: customized by applications

11) Enclosure: Aluminum



Brief Descriptions:

Designed for 60V lithium(Li-ion, LiFePO4, LiMnO2) or lead acid (AGM, GEL, SLA) battery powered electric scooters / motorcycles, input with PFC worldwide 110 to 230Vac and rated output voltatge is 60V 8A. Smart max charging voltage is 72V / 73.5V for lead acid type batteries and 73V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency and pretect your battery life maximumly.





Output series: 600W PFC Size: 230×120×70 mm Net weight: 2.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

PFC

AC Input:

110 - 230V



Frequency:

47~63HZ



VL1225L 12V LiFePO4 Battery   14.6V 25A CC5~8%
VL1225 12V Lead-acid Battery 13.5V 14.7V 25A CC20%
VL1425 14V AGM Battery 13.5V 14.4V 25A CC20%
VL1625L 16V LiFePO4 Battery   18.2V 25A CC5~8%
VL2418LM 24V Li-MnO2 Battery   29.4V 18A CC5~8%
VL2418L 24V LiFePO4 Battery   29.2V 18A CC5~8%
VL2418 24V Lead-acid Battery 27.6V 29.4V 18A CC20%
VL3612LM 36V Li-MnO2 Battery   42V 12A CC5~8%
VL3612L 36V LiFePO4 Battery   43.8V 12A CC5~8%
VL3612 36V Lead-acid Battery 41.4V 44.1V 12A CC20%
VL4810LM 48V Li-MnO2 Battery   54.6V 10A CC5~8%
VL4810L 48V LiFePO4 Battery   43.8V 10A CC5~8%
VL4810 48V Lead-acid Battery 55.2V 58.8V 10A CC20%
VL6008L 60V LiFePO4 Battery   73V 8A CC5~8%
VL6008 60V Lead-acid Battery 67.5V 73.5V 8A CC20%
VL7206L 72V LiFePO4 Battery   87.6V 6A CC5~8%
VL7206 72V Lead-acid Battery 81V 88.2V 6A CC20%
  VL8405L 84V LiFePO4 Battery   102.2V 5A CC5~8%
  VL8405 84V Lead-acid Battery 94.5V 102.9V 5A CC20%
Note: customized input / output / plug type / connectors are available.





















































Product Information

Overview

VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.



VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.



VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.



Additional information



DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
