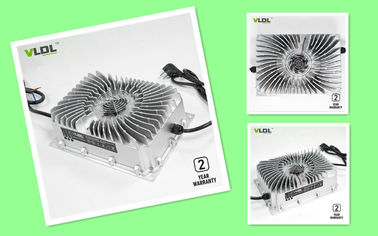

42V 36Volt 25A Waterproof Lithium Ion Battery Charger 95% Efficiency

42V 36Volt 25A Waterproof Lithium Ion Battery Charger 95% Efficiency

    • 42V 36Volt 25A Waterproof Lithium Ion Battery Charger 95% Efficiency
    • 42V 36Volt 25A Waterproof Lithium Ion Battery Charger 95% Efficiency
    • 42V 36Volt 25A Waterproof Lithium Ion Battery Charger 95% Efficiency
    • 42V 36Volt 25A Waterproof Lithium Ion Battery Charger 95% Efficiency
    • 42V 36Volt 25A Waterproof Lithium Ion Battery Charger 95% Efficiency
  • 42V 36Volt 25A Waterproof Lithium Ion Battery Charger 95% Efficiency

    Product Details:

    Place of Origin: CHINA
    Brand Name: VLDL
    Certification: CE, ROHS
    Model Number: VL3625LWP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: 2pcs/carton
    Delivery Time: 7-10 days
    Payment Terms: TT, Paypal
    Supply Ability: 1,000pcs/month
    Contact Now
    Detailed Product Description
    Case: Aluminum Case Dimensions: 310 × 230 × 101 Mm
    Net Weight: 8.0 KG AC Input: 90 - 264 Vac With PFC
    DC Output: Rated 36V 25A, Max 42Vdc IP Rate: IP65 Water-resist
    On - Board: On - Board Smart Charger Efficiency: >95%
    Charge Battery: Lithium-ion Battery Charge Method: Automatic Pre - Charge, CC, CV, Floating / Cut Off
    Warranty: 2 Years

    42V 36V 25A Waterproof Marine Battery Charger for Lithium ion Batteries



    Brief Descriptions:

    Waterproof / Marine 36V25A on-board smart battery charger with IP65 rate is designed for lithium or lead acid (AGM, sealed) battery powered electric cars or boat appliecation, input with PFC worldwide 110 to 230Vac and rated output voltatge is 36V 25A. Smart max charging voltage is 43.2/ 44.1V for lead acid (sealed, AGM) type batteries and 43.8V for LiFePO4 batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency and pretect your battery life maximumly.



    Technical Specs.:

    1) Dimensions(LxWxH): 310 × 230 × 101 mm

    2) Net weight: 8.0 KG

    3) Max charging voltage(CV): 42 / 43.2 / 43.8 / 44.1 volt

    4) Floating voltage: customized

    5) Max output current (CC): 25 amps

    6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

    7) AC input voltage: 110 / 240Vac

    8) AC input freq.: 50 / 60 Hz

    9) AC plug: customized by users country

    10) Output connector type: customized by applications

    11) Enclosure: Aluminum

    12) Waterproof rate: IP65



    Features:

    ◆ Advanced high frequency switching mode power supply technology.

    ◆ DC output isolated from AC input.

    ◆ Auto worldwide Input 110 / 240Vac(90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.

    ◆ Charging parameters are insensitive to the AC input line voltage variations.

    ◆ Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

    ◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

    ◆ Possibility to customize charging curve for request.

    ◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

    ◆ Efficiency > 95%.

    ◆ Forced ventilation with fans.

    ◆ 100% full load burn-in test.

    ◆ Aluminum casing, light weight, portable, on-board.



    42V 36Volt 25A Waterproof Lithium Ion Battery Charger 95% Efficiency



    1,500W waterproof charger      Size: 269×216×98 mm       Net weight: 6.0 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching



    PFC

    AC Input:

    110 - 230V



    Frequency:

    47~63HZ



    VL1280WPL 12V LiFePO4 Battery   14.6V 80A CC5~8%
    VL1280WP 12V Lead-acid Battery 13.5V 14.7V 80A CC20%
    VL1480WP 14V AGM Battery 13.5V 14.4V 80A CC20%
    VL1680WPL 16V LiFePO4 Battery   18.2V 80A CC5~8%
    VL2445WPLM 24V Li-MnO2 Battery   29.4V 45A CC5~8%
    VL2445L 24V LiFePO4 Battery   29.2V 45A CC5~8%
    VL2445 24V Lead-acid Battery 27.6V 29.4V 45A CC20%
    VL3630WPLM 36V Li-MnO2 Battery   42V 30A CC5~8%
    VL3630WPL 36V LiFePO4 Battery   43.8V 30A CC5~8%
    VL3630WP 36V Lead-acid Battery 41.4V 44.1V 30A CC20%
    VL4825WPLM 48V Li-MnO2 Battery   54.6V 25A CC5~8%
    VL4825WPL 48V LiFePO4 Battery   43.8V 25A CC5~8%
    VL4825WP 48V Lead-acid Battery 55.2V 58.8V 25A CC20%
    VL6020WPL 60V LiFePO4 Battery   73V 20A CC5~8%
    VL6020WP 60V Lead-acid Battery 67.5V 73.5V 20A CC20%
    VL7215WPL 72V LiFePO4 Battery   87.6V 15A CC5~8%
    VL7215WP 72V Lead-acid Battery 81V 88.2V 15A CC20%
    VL8413WPL 84V LiFePO4 Battery   102.2V 13A CC5~8%
    VL8413WP 84V Lead-acid Battery 94.5V 102.9V 13A CC20%
    VL9612WPL 96V LiFePO4 Battery   116.8V 12A CC5~8%
    VL9612WP 96V Lead-acid Battery 108V 117.6V 12A CC20%
    Note: customized input / output / plug type / connectors are available.

    FAQ



    Q. Are you a factory or trading company?

    A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.



    Q. What's about the warranty for Danl battery chargers?

    Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.



    Q. Do you accept OEM order?

    A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.



    Q. What is about the lead time for an order?

    A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.



    Q. What certification do you have?

    A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.



    Q. Why choose your smart battery chargers?

    A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
