|Place of Origin:||China|
|Minimum Order Quantity:||4 / pcs|
|Packaging Details:||Carton, 4 pcs / carton|
|Payment Terms:||T/T, Paypal|
|Supply Ability:||10000pcs / month|
|Net Weight:||5.0 KG||On-board:||Yes, Anti-vibration|
|Applied To:||24V Lithium Battery Pack||Input Volt:||110 / 230 Vac|
|DC Output:||48V 20A||Max Charging:||58.4V Or 58.8V|
|Charge Steps:||Soft Start, CC, CV, Floating / Cut Off||Warranty:||2 Years|

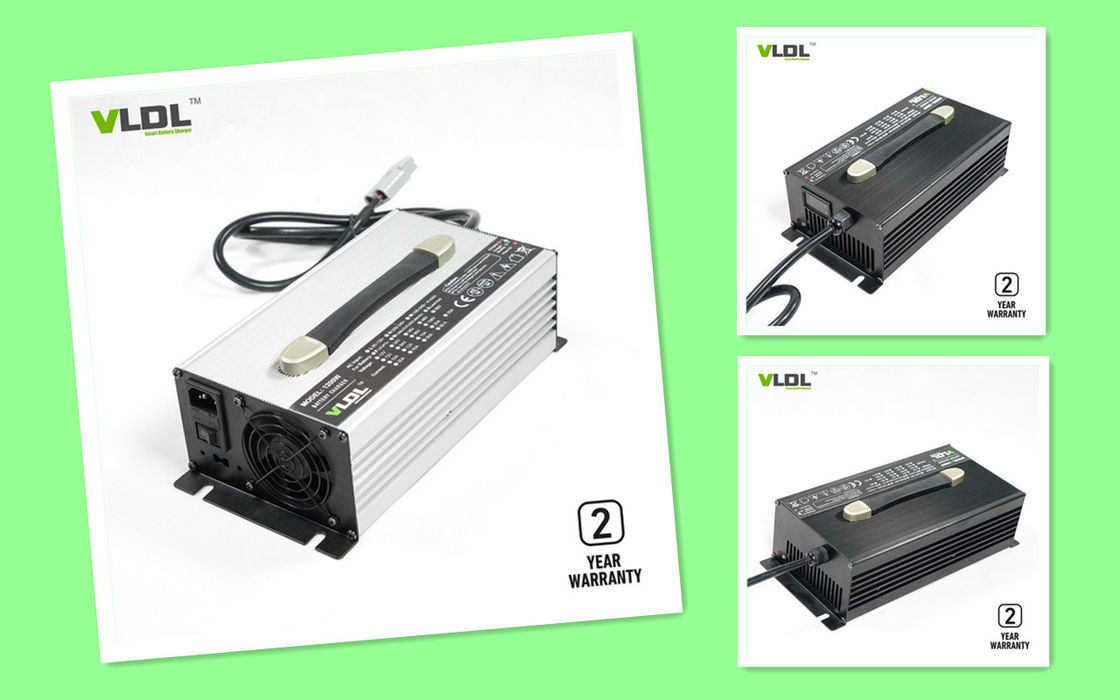

On boad and Anti vibration 48 Volt 20A Battery Charger for Lithium Battery
This on-board / anti-vibration 48V 20A smart battery charger is designed for 48V lithium / lead acid battery power electric mobility scooters. It can charge 48V lead acid, AGM, sealed deepcycle and lithium types batteries. Smart charging with pre-charge, CC, CV and floating or automatic cut-off method. With max 58.4 / 58.8 Volt 20 Amps fast charging and multi-protections. It can be installed on EV, on-board charger with mounting feet.
1) Dimensions(LxWxH): 260 x 150 x 90 mm
2) Net weight: 5.0 KG
3) Max charging voltage(CV): 58.4 / 58.8 Vdc
4) Floating voltage:/
5) Max output current (CC): 20 amps
6) Charging method: CC, CV, floating/trickle or shut off
7) AC input voltage: 110 / 230Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
1) Optional charging methods: LiFePO4, Li-ion, LiMo2, AGM, GEL, Flooded.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
|Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
110 / 230V
|VL1260L||12V LiFePO4 Battery||14.6V||60A||CC5~8%|
|VL1260||12V Lead-acid Battery||13.5V||14.7V||60A||CC20%|
|VL1460||14V AGM Battery||13.5V||14.4V||60A||CC20%|
|VL1660L||16V LiFePO4 Battery||18.2V||60A||CC5~8%|
|VL2435LM||24V Li-MnO2 Battery||29.4V||35A||CC5~8%|
|VL2435L||24V LiFePO4 Battery||29.2V||35A||CC5~8%|
|VL2435||24V Lead-acid Battery||27.6V||29.4V||35A||CC20%|
|VL3620LM||36V Li-MnO2 Battery||42V||20A||CC5~8%|
|VL3620L||36V LiFePO4 Battery||43.8V||20A||CC5~8%|
|VL3620||36V Lead-acid Battery||41.4V||44.1V||20A||CC20%|
|VL4818LM||48V Li-MnO2 Battery||54.6V||18A||CC5~8%|
|VL4818L||48V LiFePO4 Battery||43.8V||18A||CC5~8%|
|VL4818||48V Lead-acid Battery||55.2V||58.8V||18A||CC20%|
|VL6015L||60V LiFePO4 Battery||73V||15A||CC5~8%|
|VL6015||60V Lead-acid Battery||67.5V||73.5V||15A||CC20%|
|VL7213L||72V LiFePO4 Battery||87.6V||13A||CC5~8%|
|VL7213||72V Lead-acid Battery||81V||88.2V||13A||CC20%|
|VL8411L||84V LiFePO4 Battery||102.2V||11A||CC5~8%|
|VL8411||84V Lead-acid Battery||94.5V||102.9V||11A||CC20%|
|VL9610L||96V LiFePO4 Battery||116.8V||10A||CC5~8%|
|VL9610||96V Lead-acid Battery||108V||117.6V||10A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.
VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.
VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.
