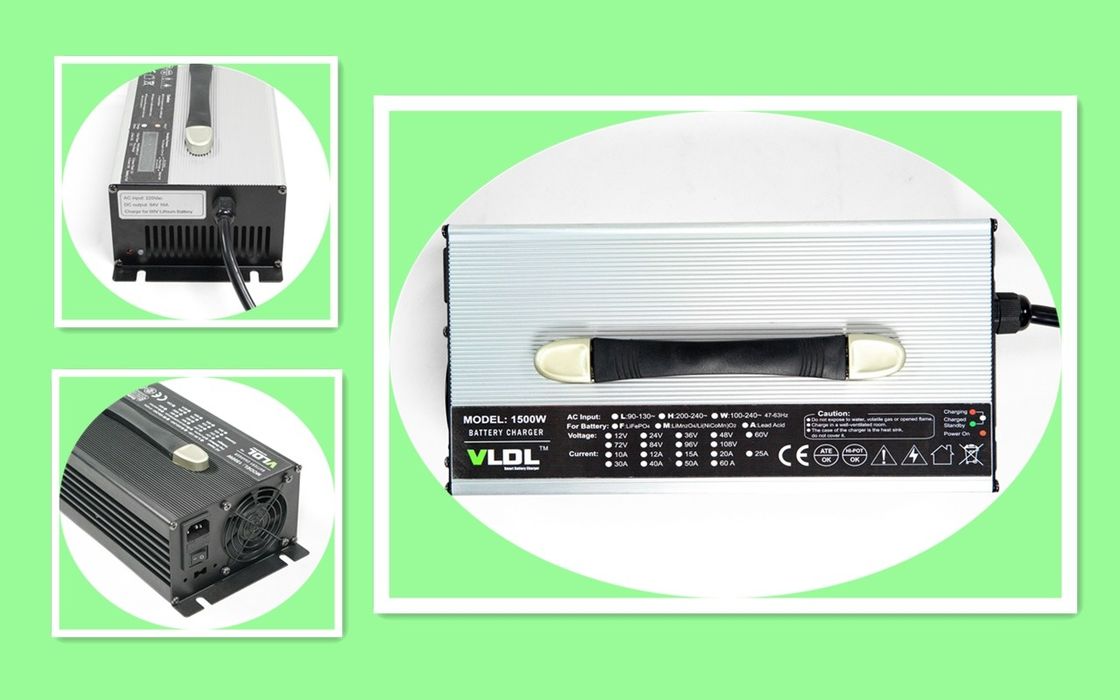

58.8V 25A Lead Acid Battery Charger Automatic CC CV Float 3 Steps Charging

58.8V 25A Lead Acid Battery Charger, automatic CC CV Float 3 steps charging

Brief Description:

Advanced high frequency switching mode power supply technology. Designed for 48V lead acid battery. Custom-made charging method is available. Single 110V or 230Vac. Rated output voltatge is 48V 25A. Max charging voltage could be 58.8V according to battery types. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off. Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity. Aluminum casing, light weight, portable. Suit to charge 48V e-forklifts, e-club cars or other EVs.

Technical Specs.:

1) Dimensions(LxWxH): 300 x 150 x 90 mm

2) Net weight: 5.5 KG

3) Max charging voltage(CV): 58.8 volt

4) Floating voltage: 55.2V

5) Max output current (CC): 25 amps

6) Charging method: CC, CV, floating

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Features

1) Optional charging methods: Lithium or lead acid batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.
