|Place of Origin:||CHINA|
|Minimum Order Quantity:||12 pcs|
|Packaging Details:||12 pcs/carton|
|Delivery Time:||7-10 days|
|Payment Terms:||TT, Paypal|
|Supply Ability:||10,000 pcs/month|
|Charger Case:||Aluminum||Dimension:||170*90*50 MM|
|Net Weight:||1.2 KG||AC Input:||110 / 230 Vac|
|DC Output:||84V 2A||Max Voltage:||102.2Vdc|
|Charge Steps:||Pre-charge, CC And CV||Manufacturer:||Danl New Energy Co., Limited|

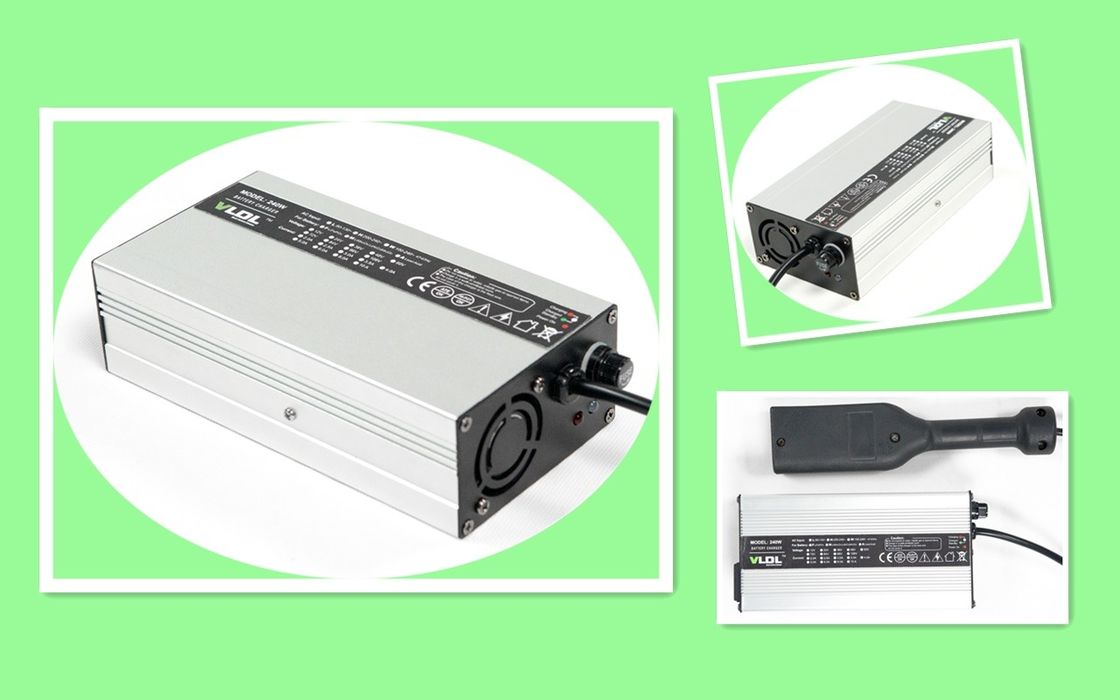

Automatic 84V 2A Lithium Battery Charger Aluminum Case with High Quality 2 Years Warranty
Designed for 84V lithium battery. Input with 110 or 230Vac and rated output voltatge is 84V 2A. Smart max charging voltage is 102.2V for Li batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.
Why Choose VLDL 84V Battery Charger?
Because we use all top components from top 5 suppliers from China and worldwide, the quality is much higher than our competitors who sell you with very cheap price.
As the old saying "You get what you pay for", so why most of battery chargers suppliers can quote so cheap price? Even a half of our quotation!!! We know that they use the used components such as the compatitor, rectifier tube, power tube etc with the 1/10 price of our's. So they save much cost, but their chargers failture rate reaches to 50% or higher.
Regarding the quality, VLDL chargers guarantee full 2 years warranty, we will replace the fault chargers freely. We have this confidence because we use the top quality components and strick quality checking system.
AC input voltage: 110 or 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 84V 2Amps
Max charging voltage: 102.2V
Dimensions(LxWxH): 170 x 90 x 50 mm
Net weight: 1.2 KG
Color: silver or black
High Frequency Switching Mode Power Supply
Smart MCU contolled
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Fully 2-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Charging 84V Lead-acid Battery Powerd Electric Motorcycles / Scooters.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connecotor by customer's applications.
|Output series: 240W Size: 170×90×50 mm Net weight: 1.2 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
110 / 230V
|VL1210L||12V LiFePO4 Battery||14.6V||10A||CC5~8%|
|VL1210||12V Lead-acid Battery||13.5V||14.7V||10A||CC20%|
|VL2407LM||24V Li-MnO2 Battery||29.4V||7A||CC5~8%|
|VL2407L||24V LiFePO4 Battery||29.2V||7A||CC5~8%|
|VL2407||24V Lead-acid Battery||27.6V||29.4V||7A||CC20%|
|VL3605LM||36V Li-MnO2 Battery||42V||5A||CC5~8%|
|VL3605L||36V LiFePO4 Battery||43.8V||5A||CC5~8%|
|VL3605||36V Lead-acid Battery||41.4V||44.1V||5A||CC20%|
|VL4804LM||48V Li-MnO2 Battery||54.6V||4A||CC5~8%|
|VL4804L||48V LiFePO4 Battery||43.8V||4A||CC5~8%|
|VL4804||48V Lead-acid Battery||55.2V||58.8V||4A||CC20%|
|VL6003L||60V LiFePO4 Battery||73V||3A||CC5~8%|
|VL6003||60V Lead-acid Battery||67.5V||73.5V||3A||CC20%|
|VL72025L||72V LiFePO4 Battery||87.6V||2.5A||CC5~8%|
|VL72025||72V Lead-acid Battery||81V||88.2V||2.5A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
