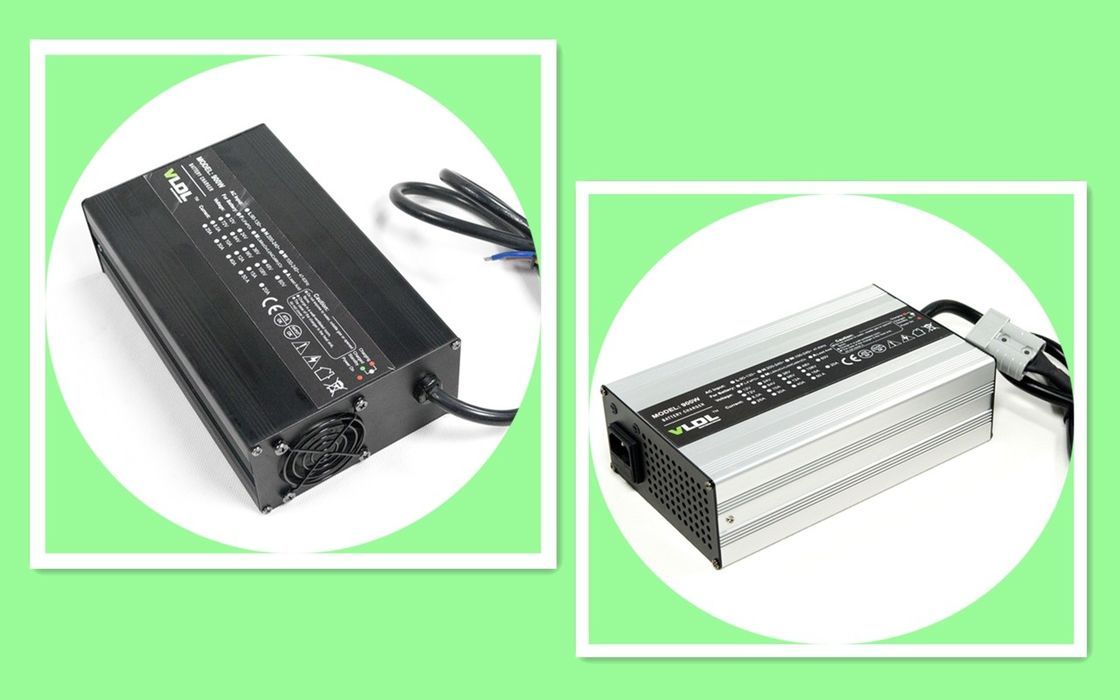

Automatic 60V 10A Lithium Battery Charger Max 73V E - Sweepers Charger 230*135*70 MM

Automatic 60V 10A Lithium Battery Charger Max 73V E - Sweepers Charger 230*135*70 MM

  • Automatic 60V 10A Lithium Battery Charger Max 73V E - Sweepers Charger 230*135*70 MM
  • Automatic 60V 10A Lithium Battery Charger Max 73V E - Sweepers Charger 230*135*70 MM
  • Automatic 60V 10A Lithium Battery Charger Max 73V E - Sweepers Charger 230*135*70 MM
  • Automatic 60V 10A Lithium Battery Charger Max 73V E - Sweepers Charger 230*135*70 MM
Automatic 60V 10A Lithium Battery Charger Max 73V E - Sweepers Charger 230*135*70 MM
Product Details:
Place of Origin: CHINA
Brand Name: VLDL
Certification: CE, ROHS
Model Number: VL6010L
Payment & Shipping Terms:
Minimum Order Quantity: 4 pcs
Price: Negotiable
Packaging Details: 4 pcs/carton
Delivery Time: 7-10 days
Payment Terms: TT, Paypal
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Casing: Aluminum, Silver / Black Dimensions: 230*135*70 MM
G.W: 3.5 KG Input Volt: 110 Or 230Vac
DC Output: Rated 60V 10A, Max 72V / 73V / 73.5V Charge Battery: 60V Lithium Battery
Charge EV: E-motorcycles, E-sweepers Warranty: 2 Years
High Light:

60 volt battery charger

,

60v lead acid battery charger

Automatic 60V 10A Lithium Battery Charger, max 73V CC CV charging, 2 years warranty



Brief Descriptions:

Designed for 60V lithium or lead acid (AGM, GEL, SLA) battery powered electric scooters / motorcycles, input 110 or  230Vac and rated output voltatge is 60V 10A. Smart max charging voltage is 72V / 73.5V for lead acid type batteries and 73V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency and pretect your battery life maximumly.

Automatic 60V 10A Lithium Battery Charger Max 73V E - Sweepers Charger 230*135*70 MM 0



Technical Specs.:



1) Dimensions(LxWxH): 230 x 135 x 70 mm

2) Net weight: 3.0 KG

3) Max charging voltage(CV): 72V / 73V / 73.5V

4) Floating voltage: /

5) Max output current (CC): 10 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by users country

10) Output connector type: customized by applications

11) Enclosure: Aluminum



Output series: 900W Size: 230×135×70 mm Net weight: 3.0 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching



AC Input:

110 / 230V



Frequency:

47~63HZ



VL1230L 12V LiFePO4 Battery   14.6V 30A CC5~8%
VL1230 12V Lead-acid Battery 13.5V 14.7V 30A CC20%
VL1430 14V AGM Battery 13.5V 14.4V 30A CC20%
VL1630L 16V LiFePO4 Battery   18.2V 30A CC5~8%
VL2425LM 24V Li-MnO2 Battery   29.4V 25A CC5~8%
VL2425L 24V LiFePO4 Battery   29.2V 25A CC5~8%
VL2425 24V Lead-acid Battery 27.6V 29.4V 25A CC20%
VL3618LM 36V Li-MnO2 Battery   42V 18A CC5~8%
VL3618L 36V LiFePO4 Battery   43.8V 18A CC5~8%
VL3618 36V Lead-acid Battery 41.4V 44.1V 18A CC20%
VL4815LM 48V Li-MnO2 Battery   54.6V 15A CC5~8%
VL4815L 48V LiFePO4 Battery   43.8V 15A CC5~8%
VL4815 48V Lead-acid Battery 55.2V 58.8V 15A CC20%
VL6012L 60V LiFePO4 Battery   73V 12A CC5~8%
VL6012 60V Lead-acid Battery 67.5V 73.5V 12A CC20%
VL7210L 72V LiFePO4 Battery   87.6V 10A CC5~8%
VL7210 72V Lead-acid Battery 81V 88.2V 10A CC20%
  VL8408L 84V LiFePO4 Battery   102.2V 8A CC5~8%
  VL8408 84V Lead-acid Battery 94.5V 102.9V 8A CC20%
Note: customized input / output / plug type / connectors are available.





































































Product Information

Overview



VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.



VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.



VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.



Additional information



DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.



Charging Curve:

Automatic 60V 10A Lithium Battery Charger Max 73V E - Sweepers Charger 230*135*70 MM 1
