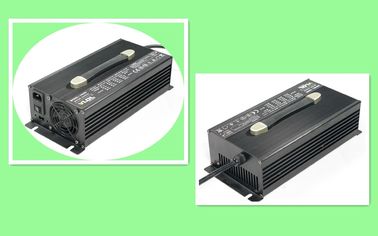

Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power

Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power

    • Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power
    • Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power
    • Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power
    • Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power
    • Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power
    • Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power
    • Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power
    • Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power
  • Portable 54.6V 20A Lithium Ion Battery Charger with Aluminum Case 1200W Output Power

    Product Details:

    Place of Origin: CHINA
    Brand Name: VLDL
    Certification: CE, ROHS
    Model Number: VL4820L

    Payment & Shipping Terms:

    Minimum Order Quantity: 4 pcs
    Price: Negotiable
    Packaging Details: 4 pcs / carton
    Delivery Time: 7-10 days
    Payment Terms: TT, Paypal
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Case Material: Aluminum Size: 300*150*90 Mm
    Net Weight: 5.5 KG Input Volt: 110 Or 230 Vac
    Output: 48V 25A, Max 54.6V Applied Battery: Lithium-ion
    Color: Black Or Silver Output Power: 1200W Max
    Charging EV: Electric Motorcycles, Electric Floor Sweeper, E-cars

    54.6V 20A Lithium ion Battery Charger, Smart and Portable with Aluminum Case, 1200W Output Power



    Brief Description:



    High power 1200W max 54.6 volts 20 amps automatic battery charger for lithium ion battery pack.

    Input voltage: 110 or 240 Vac.

    It is designed for electric motorcycles, electric floor sweepers and electric cars, smart charge LiFePO4 / Li ion / LiMO2 batteries.

    Charging with 54.6 Vdc or 58.4 Vdc 20 amps, max 1200 watts output power.

    Smart 4 steps charging: pre charge, CC, CV and automatic shut off.

    Small size, portable for electric scooters, electric bikes and electric motorcycles.

    We can customize input and output by your battery specifications.



    Features:

    Advanced high frequency switching mode power supply technology.

    DC output isolated from AC input.

    Input 110 / 230Vac, 50Hz ~ 60Hz.

    Charging parameters are insensitive to the AC input line voltage variations.

    Completely automatic battery charging: Pre charging, CC, CV, Absorption, Float or Cut - off.

    2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

    Possibility to customize charging curve for request.

    Protections: short circuit, over voltage, over temperature, reverse Polarity.

    Efficiency > 95%.

    Forced ventilation with fans.

    100% full load burn-in test.

    Aluminum casing, light weight, portable.



    Technical Specs.:

    1) Dimensions(LxWxH): 260 x 150 x 90 mm

    2) Net weight: 5.5 KG

    3) Max charging voltage(CV): 54.6 / 58.4 volt

    4) Floating voltage: customized

    5) Max output current (CC): 20 amps

    6) Charging method: automatic pre-charge, CC, CV, floating / trickle or shut off

    7) AC input voltage: 110 or 240Vac

    8) AC input freq.: 50 / 60 Hz

    9) AC plug: customized by users country

    10) Output connector type: customized by applications

    11) Enclosure: Aluminum



    Output series: 1,200W      Size: 260×150×90 mm      Net weight: 5.0 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching



    AC Input:

    110 / 230V



    Frequency:

    47~63HZ



    VL1250L 12V LiFePO4 Battery   14.6V 50A CC5~8%
    VL1250 12V Lead-acid Battery 13.5V 14.7V 50A CC20%
    VL1450 14V AGM Battery 13.5V 14.4V 50A CC20%
    VL1650L 16V LiFePO4 Battery   18.2V 50A CC5~8%
    VL2435LM 24V Li-MnO2 Battery   29.4V 35A CC5~8%
    VL2435L 24V LiFePO4 Battery   29.2V 35A CC5~8%
    VL2435 24V Lead-acid Battery 27.6V 29.4V 35A CC20%
    VL3625LM 36V Li-MnO2 Battery   42V 25A CC5~8%
    VL3625L 36V LiFePO4 Battery   43.8V 25A CC5~8%
    VL3625 36V Lead-acid Battery 41.4V 44.1V 25A CC20%
    VL4820LM 48V Li-MnO2 Battery   54.6V 20A CC5~8%
    VL4820L 48V LiFePO4 Battery   43.8V 20A CC5~8%
    VL4820 48V Lead-acid Battery 55.2V 58.8V 20A CC20%
    VL6015L 60V LiFePO4 Battery   73V 15A CC5~8%
    VL6015 60V Lead-acid Battery 67.5V 73.5V 15A CC20%
    VL7212L 72V LiFePO4 Battery   87.6V 12A CC5~8%
    VL7212 72V Lead-acid Battery 81V 88.2V 12A CC20%
      VL8410L 84V LiFePO4 Battery   102.2V 10A CC5~8%
      VL8410 84V Lead-acid Battery 94.5V 102.9V 10A CC20%
      VL9609L 96V LiFePO4 Battery   116.8V 9A CC5~8%
      VL9609 96V Lead-acid Battery 108V 117.6V 9A CC20%
    Note: customized input / output / plug type / connectors are available.



    Additional information

    DANL New Energy is a 15 years battery chargers manufacturer / factory / supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
