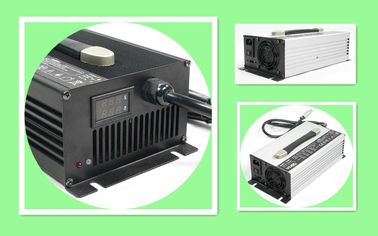

Portable 72V 84V 12A Lithium Battery Charger For E - Club Cars Aluminum Enclosure

Portable 72V 84V 12A Lithium Battery Charger For E - Club Cars Aluminum Enclosure

  • Portable 72V 84V 12A Lithium Battery Charger For E - Club Cars Aluminum Enclosure
  • Portable 72V 84V 12A Lithium Battery Charger For E - Club Cars Aluminum Enclosure
  • Portable 72V 84V 12A Lithium Battery Charger For E - Club Cars Aluminum Enclosure
  • Portable 72V 84V 12A Lithium Battery Charger For E - Club Cars Aluminum Enclosure
Portable 72V 84V 12A Lithium Battery Charger For E - Club Cars Aluminum Enclosure
Product Details:
Place of Origin: China
Brand Name: VLDL
Certification: CE, RoHS, C-Tick
Model Number: VL7212L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD188/unit
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Case: Aluminium Color: Silver / Black
Size: 260*150*90 Mm Net Weight: 4.5 KG
CC: 12 Amps CV: 84V / 87.6V / 88.2V
Input Voltage: 110V Or 230V Apply To Battery: Li-ion / LiFePO4 Battery
Warranty: 2 Years
High Light:

li ion battery pack charger

,

lithium battery smart charger

72V 84V 12A Lithium Battery Charger, Max 87.6V / 88.2V CC CV Charging, Aluminium Case, Portable

Brief Description:
Advanced high frequency switching mode power supply technology.
Designed for 72V lithium or lead acid battery.
Custom-made charging method is available.
Single 110V or 230Vac.
Rated output voltatge is 72V 12A.
Max charging voltage could be 84V, 87.6V or 88.2V according to battery types.
Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
Suit to charge 48V e-forklifts, e-club cars or other EVs.

Technical Specs.:
1) Dimensions(LxWxH): 260 x 150 x 90 mm
2) Net weight: 5.5 KG
3) Max charging voltage(CV): 84V, 87.6V or 88.2 volts
4) Floating voltage: customized
5) Max output current (CC): 12 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 or 230Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by users country
10) Output connector type: customized by applications
11) Enclosure: Aluminum

Ralated Charger of 1200W:

Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG
InputModelApply to battery typesFloating VCV (V)CC (A)Switching


AC Input:
110 or 230V

Frequency:
47~63HZ


VL1260L12V LiFePO4 Battery 14.6V60ACC5~8%
VL126012V Lead-acid Battery13.5V14.7V60ACC20%
VL146014V AGM Battery13.5V14.4V60ACC20%
VL1660L16V LiFePO4 Battery 18.2V60ACC5~8%
VL2435LM24V Li-MnO2 Battery 29.4V35ACC5~8%
VL2435L24V LiFePO4 Battery 29.2V35ACC5~8%
VL243524V Lead-acid Battery27.6V29.4V35ACC20%
VL3620LM36V Li-MnO2 Battery 42V20ACC5~8%
VL3620L36V LiFePO4 Battery 43.8V20ACC5~8%
VL362036V Lead-acid Battery41.4V44.1V20ACC20%
VL4818LM48V Li-MnO2 Battery 54.6V18ACC5~8%
VL4818L48V LiFePO4 Battery 43.8V18ACC5~8%
VL481848V Lead-acid Battery55.2V58.8V18ACC20%
VL6015L60V LiFePO4 Battery 73V15ACC5~8%
VL601560V Lead-acid Battery67.5V73.5V15ACC20%
VL7213L72V LiFePO4 Battery 87.6V13ACC5~8%
VL721372V Lead-acid Battery81V88.2V13ACC20%
VL8411L84V LiFePO4 Battery 102.2V11ACC5~8%
VL841184V Lead-acid Battery94.5V102.9V11ACC20%
VL9610L96V LiFePO4 Battery 116.8V10ACC5~8%
VL961096V Lead-acid Battery108V117.6V10ACC20%
Note: customized input / output / plug type / connectors are available


72V 12A Lithium Battery Charger For Your E-Life

No matter the romantic cycling city Copenhagen of Denmark, the passionate motorcycle home of America or the congested city of Beijing, the modes of transportation must be the best way to show the city life style.
With the development of society, electric vehicles are not only a vehicle but a life style of simple, convenient, economic and environmental protection.
As a relevant and important part of battery, a high quality battery charger will help you save money and Time.

VLDL 72V 12A Lithium Battery Charger in 1200W output power is a good choice for your E-vehicles. There are different advantages related in the 72V 12A battery charger. It is an awesome arrangement for the individuals who require the better charge in the battery. Presently, the general population can purchase various types of battery charger from the trustworthy organization.
Smart power system Prolong the battery life. Once the battery is full, the charger screens the battery voltage discontinuously. As lead-acid battery need the longer charging time than lithium battery , it can protect the circuit inside the car effectively.

There are thousands of battery charger brand in the market , fine a reliable manufacturer is also a important thing to save your time and improve efficiency. You will realized that the regular battery charger may not suitable for your battery as it is tailor-made or your battery required especial power. So a manufacturer who can make the customization is necessary for you.
