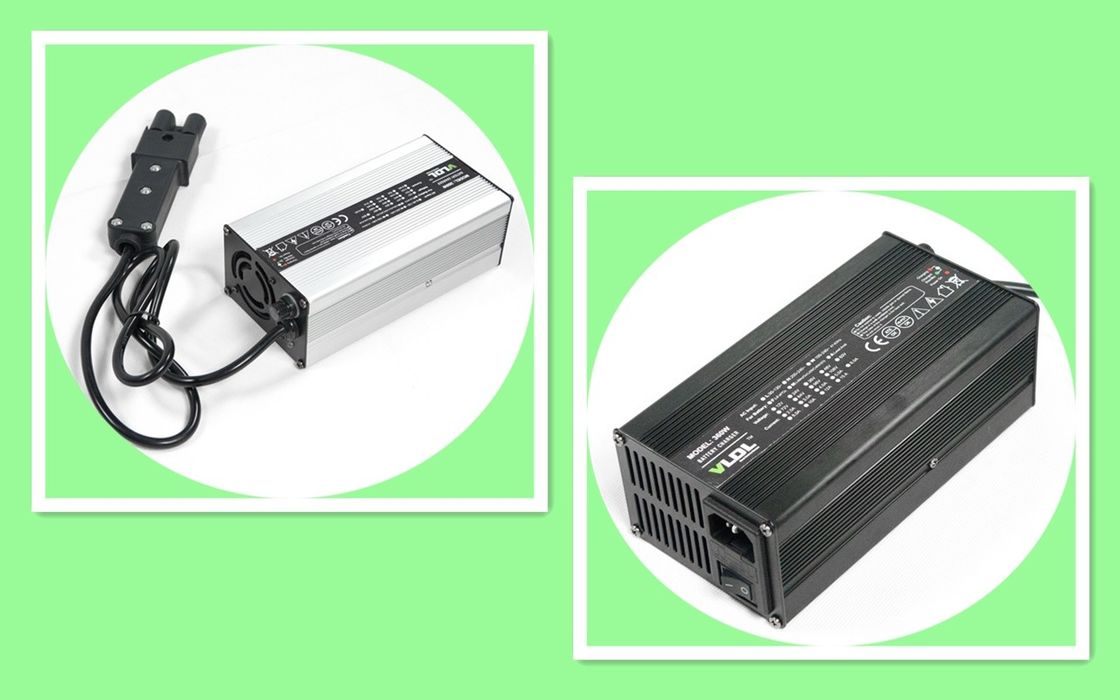

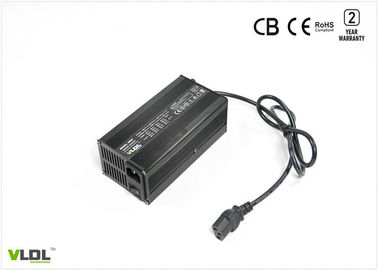

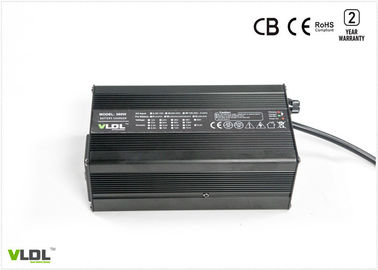

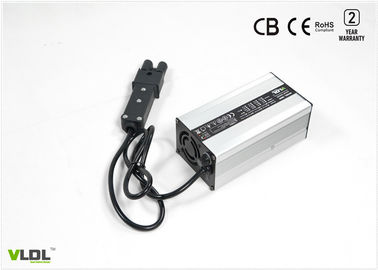

60V 4A Electric Motorcycle Battery Charger Aluminum Case Light Weight

60V 4A Electric Motorcycle Battery Charger Aluminum Case Light Weight

  • 60V 4A Electric Motorcycle Battery Charger Aluminum Case Light Weight
  • 60V 4A Electric Motorcycle Battery Charger Aluminum Case Light Weight
  • 60V 4A Electric Motorcycle Battery Charger Aluminum Case Light Weight
  • 60V 4A Electric Motorcycle Battery Charger Aluminum Case Light Weight
60V 4A Electric Motorcycle Battery Charger Aluminum Case Light Weight
Product Details:
Place of Origin: CHINA
Brand Name: VLDL
Certification: CE, ROHS
Model Number: VL6004L
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: 10 pcs / carton
Delivery Time: 7 - 10 days
Payment Terms: TT, Paypal, Payoneer
Supply Ability: 10,000 pcs / month
Contact Now
Detailed Product Description
Housing: Aluminium, Silver Or Black Dimensions: 170×90×63 MM
Net Weight: 1.3 KG Input Volt: 110 / 230 Vac
Output: Rated 60V 4A Max Power: 360W
Charge Battery: 60V Li Ion Batteries Charge EV: Electric Motorcycles / Scooters
High Light:

electric scooter battery charger

,

portable motorcycle battery charger

Li ion Battery Charger 60V 4A For Electric Motorcycle, Aluminum Case With Light Weight, Smart Charge, RoHS Standard



Descriptions:



Designed for 60V lithium ion battery powered Electric Motorcycles. Input 110 - 230Vac and rated output voltatge is 60V 4A. Smart max charging voltage is 72 / 73.5V for li-ion type batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.



Specifications:

AC input voltage: 110 / 240Vac

AC input freq.: 50 / 60 Hz

Rated output: 60V 4Amps

Max charging voltage: 72V / 73.5V

Dimensions(LxWxH): 170 x 90 x 63 mm

Net weight: 1.3 KG

Housing: Aluminum



Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

60V 12A Lithium Battery Charger, Suit For Electric Motorcycles, CC CV and Trickle Automatic Charging, 3 KG



Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU contolled



Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.



Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.



Applications:

Charging 60V Lithium Battery Powerd Electric Motorcycles / Scooters.



Input Plug & Output Connector:

We supply different plugs and connecotor by customer's applications.



Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Input 110 / 230Vac, 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.



Output series: 360W      Size: 170×90×63 mm      Net weight: 1.3 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching



AC Input:

110 / 230V



Frequency:

47~63HZ



VL1220L 12V LiFePO4 Battery   14.6V 20A CC5~8%
VL1220 12V Lead-acid Battery 13.5V 14.7V 20A CC20%
VL2412LM 24V Li-MnO2 Battery   29.4V 12A CC5~8%
VL2412L 24V LiFePO4 Battery   29.2V 12A CC5~8%
VL2412 24V Lead-acid Battery 27.6V 29.4V 12A CC20%
VL3608LM 36V Li-MnO2 Battery   42V 8A CC5~8%
VL3608L 36V LiFePO4 Battery   43.8V 8A CC5~8%
VL3608 36V Lead-acid Battery 41.4V 44.1V 8A CC20%
VL4805LM 48V Li-MnO2 Battery   54.6V 5A CC5~8%
VL4805L 48V LiFePO4 Battery   43.8V 5A CC5~8%
VL4805 48V Lead-acid Battery 55.2V 58.8V 5A CC20%
VL6004L 60V LiFePO4 Battery   73V 4A CC5~8%
VL6004 60V Lead-acid Battery 67.5V 73.5V 4A CC20%
VL7203L 72V LiFePO4 Battery   87.6V 3A CC5~8%
VL7203 72V Lead-acid Battery 81V 88.2V 3A CC20%
Note: customized input / output / plug type / connectors are available.



Product Information



Overview



VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.



VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.



VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.



Additional information



DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.



Battery Charger Aging:

60V 4A Electric Motorcycle Battery Charger Aluminum Case Light Weight 1
