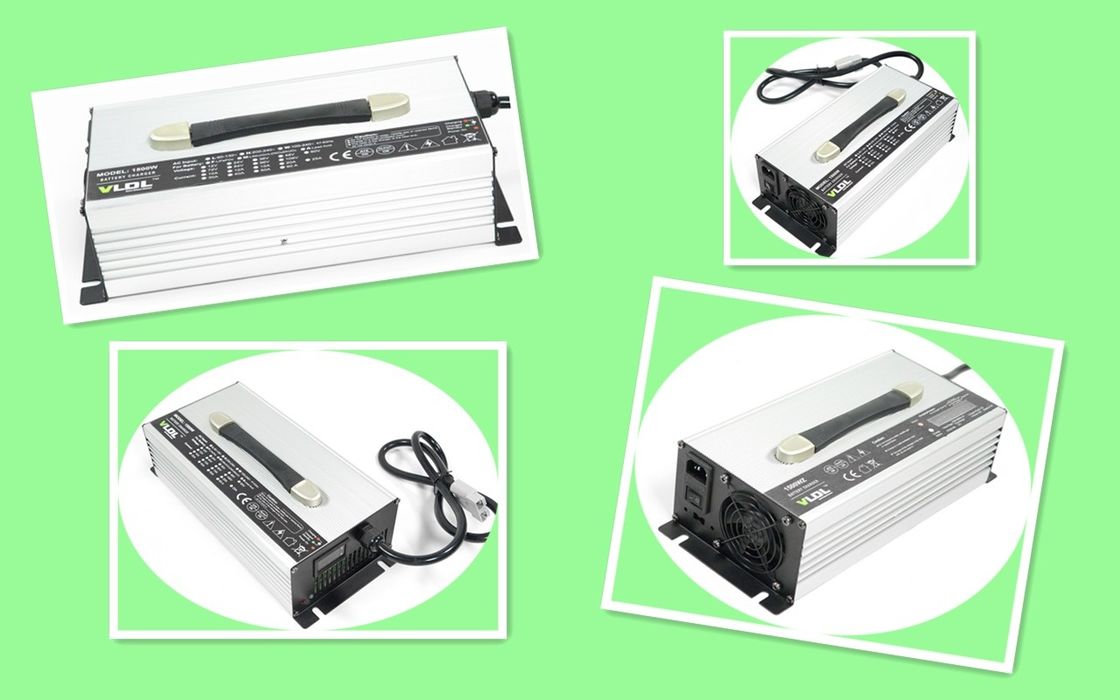

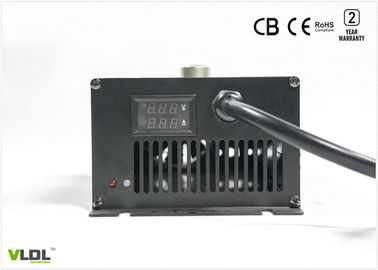

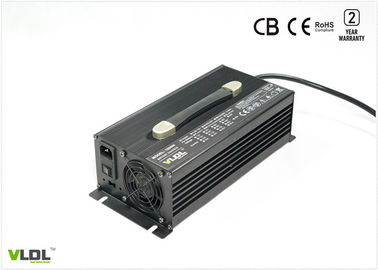

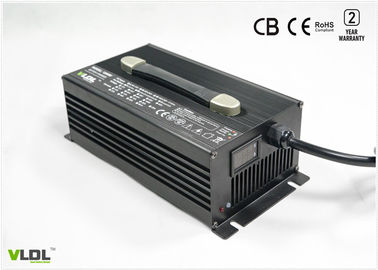

CE RoHS Battery Charger 60 Volts 18 Amps 300*150*90 MM With 110 / 240 Vac Input

CE RoHS Battery Charger 60 Volts 18 Amps 300*150*90 MM With 110 / 240 Vac Input

    • CE RoHS Battery Charger 60 Volts 18 Amps 300*150*90 MM With 110 / 240 Vac Input
    • CE RoHS Battery Charger 60 Volts 18 Amps 300*150*90 MM With 110 / 240 Vac Input
    • CE RoHS Battery Charger 60 Volts 18 Amps 300*150*90 MM With 110 / 240 Vac Input
    • CE RoHS Battery Charger 60 Volts 18 Amps 300*150*90 MM With 110 / 240 Vac Input
  • CE RoHS Battery Charger 60 Volts 18 Amps 300*150*90 MM With 110 / 240 Vac Input

    Product Details:

    Place of Origin: CHINA
    Brand Name: VLDL
    Certification: CE, ROHS
    Model Number: VL6018 / VL6018L

    Payment & Shipping Terms:

    Minimum Order Quantity: 4 pcs
    Price: Negotiable
    Packaging Details: 4 pcs/carton
    Delivery Time: 7-10 days
    Payment Terms: TT, Paypal
    Supply Ability: 1,000pcs/month
    Contact Now
    Detailed Product Description
    Case Material: Aluminum Size: 300*150*90 MM
    Net Weight: 5.5 KG Input Volt: 110 / 230Vac
    Output: Rated 60V 18A, Max 72V / 73V / 73.5V Applied To Battery: Lithium / Lead Acid Battery
    Applied To EV: E-motorcycles, E-sweepers, E-forklifts, E-golf Car Warranty: 2 Years

    CE RoHS Battery Charger 60 Volts 18 Amps 300*150*90 MM With 110 / 240 Vac Input



    Brief Descriptions:



    Designed for 60V lithium or lead acid (AGM, GEL, SLA) battery powered electric scooters / motorcycles / floor sweeper / forlift truck, input voltage with 110 / 230Vac and rated output voltatge is 60V 18A. Smart max charging voltage is 72V / 73.5V for lead acid type batteries and 73V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency and pretect your battery life maximumly.



    Technical Specs.:



    1) Dimensions(LxWxH): 300 x 150 x 90 mm

    2) Net weight: 5.5 KG

    3) Max charging voltage(CV): 72V / 73V / 73.5V

    4) Floating voltage: customized

    5) Max output current (CC): 18 amps

    6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

    7) AC input voltage: 110 / 240Vac

    8) AC input freq.: 50 / 60 Hz

    9) AC plug: customized by users country

    10) Output connector type: customized by applications

    11) Enclosure: Aluminum



    Output series: 1,500W      Size: 300×150×90 mm      Net weight: 5.5 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching



    AC Input:

    110 / 230V



    Frequency:

    47~63HZ



    VL1280L 12V LiFePO4 Battery   14.6V 80A CC5~8%
    VL1280 12V Lead-acid Battery 13.5V 14.7V 80A CC20%
    VL1480 14V AGM Battery 13.5V 14.4V 80A CC20%
    VL1680L 16V LiFePO4 Battery   18.2V 80A CC5~8%
    VL2445LM 24V Li-MnO2 Battery   29.4V 45A CC5~8%
    VL2445L 24V LiFePO4 Battery   29.2V 45A CC5~8%
    VL2445 24V Lead-acid Battery 27.6V 29.4V 45A CC20%
    VL3630LM 36V Li-MnO2 Battery   42V 30A CC5~8%
    VL3630L 36V LiFePO4 Battery   43.8V 30A CC5~8%
    VL3630 36V Lead-acid Battery 41.4V 44.1V 30A CC20%
    VL4825LM 48V Li-MnO2 Battery   54.6V 25A CC5~8%
    VL4825L 48V LiFePO4 Battery   43.8V 25A CC5~8%
    VL4825 48V Lead-acid Battery 55.2V 58.8V 25A CC20%
    VL6020L 60V LiFePO4 Battery   73V 20A CC5~8%
    VL6020 60V Lead-acid Battery 67.5V 73.5V 20A CC20%
    VL7215L 72V LiFePO4 Battery   87.6V 15A CC5~8%
    VL7215 72V Lead-acid Battery 81V 88.2V 15A CC20%
      VL8413L 84V LiFePO4 Battery   102.2V 13A CC5~8%
      VL8413 84V Lead-acid Battery 94.5V 102.9V 13A CC20%
      VL9612L 96V LiFePO4 Battery   116.8V 12A CC5~8%
      VL9612 96V Lead-acid Battery 108V 117.6V 12A CC20%
    Note: customized input / output / plug type / connectors are available.



    Our Sevice



    OEM Service: providing all switching mode power supply technology manufacturing service including power supply, smart battery chargers.



    ODM Service: providing design and technology of power supply and battery chargers, full charging solution for electric vehicles or battery powered equipment.



    After Service: 24 hours response to your inquiry and 2 years warranty for all our battery chargers.



    Li battery charger 36 volt 30 amps, automatic 4 steps charging with LCD display of charging state, 300*150*90 MM
