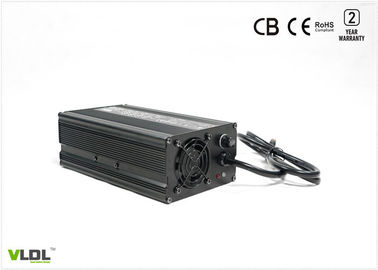

VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac

VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac

  • VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac
  • VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac
  • VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac
  • VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac
VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac
Product Details:
Place of Origin: CHINA
Brand Name: VLDL
Certification: CE, ROHS
Model Number: VL2418 / VL2418L
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: 10 pcs / carton
Delivery Time: 7-10 days
Payment Terms: TT, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Case Material: Aluminum Size: 230*120*70 MM
Net Weight: 2.5 KG Input Volt: 110 - 230Vac
Output: 24V 18A, Max 29.2V / 29.4V Applied Battery: LiFePO4, LiMO2, Li - Ion, Li Polymer
Color: Black Or Silver Output Power: 600W Max
High Light:

car battery charger in car

,

vehicle battery charger

VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac



Brief Description:



24V 18A On board battery charger, smart charging with 4 steps for lithium batteries, PFC charger with universal 110 to 240 Vac, it is designed for electric motorcycles and electric floor sweepers, smart charge LiFePO4 / Li ion / LiMO2 batteries. Charging with 29.2 Vdc or 29.4 Vdc 25 amps, max 600 watts output power. Smart 4 steps charging: pre charge, CC, CV and automatic shut off and maximumly protecting your expensive lithium batteries. Small size, portable for electric scooters, electric bikes and electric motorcycles. We can customize input and output by your battery specifications. Small size, light weigh and portable.



Features:



◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz ~ 60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre charging, CC, CV, Absorption, Float or Cut - off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: short circuit, over voltage, over temperature, reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.



Technical Specs.:



1) Dimensions(LxWxH): 220 x 120 x 70 mm

2) Net weight: 2.5 KG

3) Max charging voltage(CV): 29.2 / 29.4 volt

4) Floating voltage: customized

5) Max output current (CC): 18 amps

6) Charging method: automatic pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 240Vac universal

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by users country

10) Output connector type: customized by applications

11) Enclosure: Aluminum



Output series: 600W PFC      Size: 230×120×70 mm      Net weight: 2.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

PFC

AC Input:

110 - 230V



Frequency:

47~63HZ



VL1225L 12V LiFePO4 Battery   14.6V 25A CC5~8%
VL1225 12V Lead-acid Battery 13.5V 14.7V 25A CC20%
VL1425 14V AGM Battery 13.5V 14.4V 25A CC20%
VL1625L 16V LiFePO4 Battery   18.2V 25A CC5~8%
VL2418LM 24V Li-MnO2 Battery   29.4V 18A CC5~8%
VL2418L 24V LiFePO4 Battery   29.2V 18A CC5~8%
VL2418 24V Lead-acid Battery 27.6V 29.4V 18A CC20%
VL3612LM 36V Li-MnO2 Battery   42V 12A CC5~8%
VL3612L 36V LiFePO4 Battery   43.8V 12A CC5~8%
VL3612 36V Lead-acid Battery 41.4V 44.1V 12A CC20%
VL4810LM 48V Li-MnO2 Battery   54.6V 10A CC5~8%
VL4810L 48V LiFePO4 Battery   43.8V 10A CC5~8%
VL4810 48V Lead-acid Battery 55.2V 58.8V 10A CC20%
VL6008L 60V LiFePO4 Battery   73V 8A CC5~8%
VL6008 60V Lead-acid Battery 67.5V 73.5V 8A CC20%
VL7206L 72V LiFePO4 Battery   87.6V 6A CC5~8%
VL7206 72V Lead-acid Battery 81V 88.2V 6A CC20%
  VL8405L 84V LiFePO4 Battery   102.2V 5A CC5~8%
  VL8405 84V Lead-acid Battery 94.5V 102.9V 5A CC20%
Note: customized input / output / plug type / connectors are available.



Product Information



Overview



VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre charge, CC, CV and Floating / shut - off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.



VLDL chargers have worldwide input voltage 110 - 240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.



VLDL smart battery chargers are widely applied to electric vehicles including e - bikes, e - scooters, e - mobility, e - skateboards, e - motorcycles, e - golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.



VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac 0



VLDL 24 Volts 18 Amps SMPS On Board Battery PFC Charger With Universal 110 To 240 Vac 1
