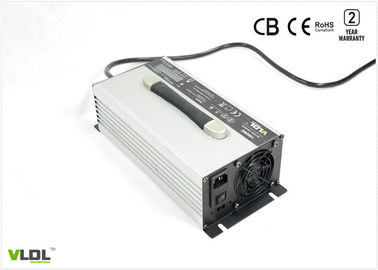

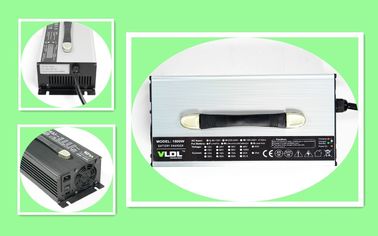

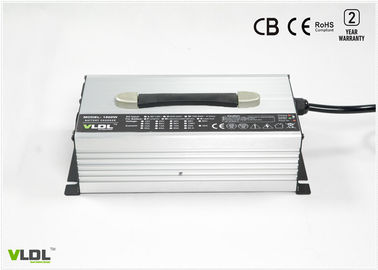

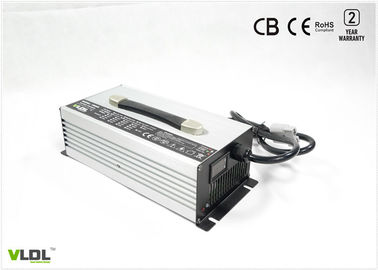

1500 Watts 60V 20A Battery Charger Multi Protections Automatic High Power Safe Charging

1500 Watts 60V 20A Battery Charger Multi Protections Automatic High Power Safe Charging

    • 1500 Watts 60V 20A Battery Charger Multi Protections Automatic High Power Safe Charging
    • 1500 Watts 60V 20A Battery Charger Multi Protections Automatic High Power Safe Charging
    • 1500 Watts 60V 20A Battery Charger Multi Protections Automatic High Power Safe Charging
    • 1500 Watts 60V 20A Battery Charger Multi Protections Automatic High Power Safe Charging
  • 1500 Watts 60V 20A Battery Charger Multi Protections Automatic High Power Safe Charging

    Product Details:

    Place of Origin: CHINA
    Brand Name: VLDL
    Certification: CE, ROHS
    Model Number: VL6020 / VL6020L

    Payment & Shipping Terms:

    Minimum Order Quantity: 4 pcs
    Price: Negotiable
    Packaging Details: 4 pcs/carton
    Delivery Time: 7-10 days
    Payment Terms: TT, Paypal
    Supply Ability: 1,000pcs/month
    Contact Now
    Detailed Product Description
    Enclosure: Aluminum Case, Silver / Black Dimensions: 300*150*90 MM
    Net Weight: 5.5 KG Input Volt: 110 / 230Vac
    Rated Output: 60V 20A Max Charge: 72V / 73V / 73.5V
    Applied To EV: E-bikes, E-scooters, E-motorcycles, E-sweepers Charge Method: Pre-charge, CC, CV, Floating / Trickle Or Shut Off
    Protections: Short Circuit, Over Voltage, Over Tempe., Reverse Polarity Manufactuer: DANL

    1500Watts 60V 20A Battery Charger Multi Protections Automatic High Power Safe Charging



    Brief Descriptions:



    Designed for 60V lithium or lead acid (AGM, GEL, SLA) battery powered electric scooters / motorcycles / floor sweeper / forlift truck, input voltage with 110 / 230Vac and rated output voltatge is 60V 20A. Smart max charging voltage is 72V / 73.5V for lead acid type batteries and 73V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency and pretect your battery life maximumly.



    Technical Specs.:



    1) Dimensions(LxWxH): 300 x 150 x 90 mm

    2) Net weight: 5.5 KG

    3) Max charging voltage(CV): 72V / 73V / 73.5V

    4) Floating voltage: customized

    5) Max output current (CC): 20 amps

    6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

    7) AC input voltage: 110 / 240Vac

    8) AC input freq.: 50 / 60 Hz

    9) AC plug: customized by users country

    10) Output connector type: customized by applications

    11) Enclosure: Aluminum



    Output series: 1,500W       Size: 300×150×90 mm        Net weight: 5.5 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching



    AC Input:

    110 / 230V



    Frequency:

    47~63HZ



    VL1280L 12V LiFePO4 Battery   14.6V 80A CC5~8%
    VL1280 12V Lead-acid Battery 13.5V 14.7V 80A CC20%
    VL1480 14V AGM Battery 13.5V 14.4V 80A CC20%
    VL1680L 16V LiFePO4 Battery   18.2V 80A CC5~8%
    VL2445LM 24V Li-MnO2 Battery   29.4V 45A CC5~8%
    VL2445L 24V LiFePO4 Battery   29.2V 45A CC5~8%
    VL2445 24V Lead-acid Battery 27.6V 29.4V 45A CC20%
    VL3630LM 36V Li-MnO2 Battery   42V 30A CC5~8%
    VL3630L 36V LiFePO4 Battery   43.8V 30A CC5~8%
    VL3630 36V Lead-acid Battery 41.4V 44.1V 30A CC20%
    VL4825LM 48V Li-MnO2 Battery   54.6V 25A CC5~8%
    VL4825L 48V LiFePO4 Battery   43.8V 25A CC5~8%
    VL4825 48V Lead-acid Battery 55.2V 58.8V 25A CC20%
    VL6020L 60V LiFePO4 Battery   73V 20A CC5~8%
    VL6020 60V Lead-acid Battery 67.5V 73.5V 20A CC20%
    VL7215L 72V LiFePO4 Battery   87.6V 15A CC5~8%
    VL7215 72V Lead-acid Battery 81V 88.2V 15A CC20%
    VL8413L 84V LiFePO4 Battery   102.2V 13A CC5~8%
    VL8413 84V Lead-acid Battery 94.5V 102.9V 13A CC20%
    VL9612L 96V LiFePO4 Battery   116.8V 12A CC5~8%
    VL9612 96V Lead-acid Battery 108V 117.6V 12A CC20%
    Note: customized input / output / plug type / connectors are available.



























































    Product Information

    Overview



    VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.



    VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.



    VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.



    Additional information



    DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.



    1500 Watts 60V 20A Battery Charger Multi Protections Automatic High Power Safe Charging
