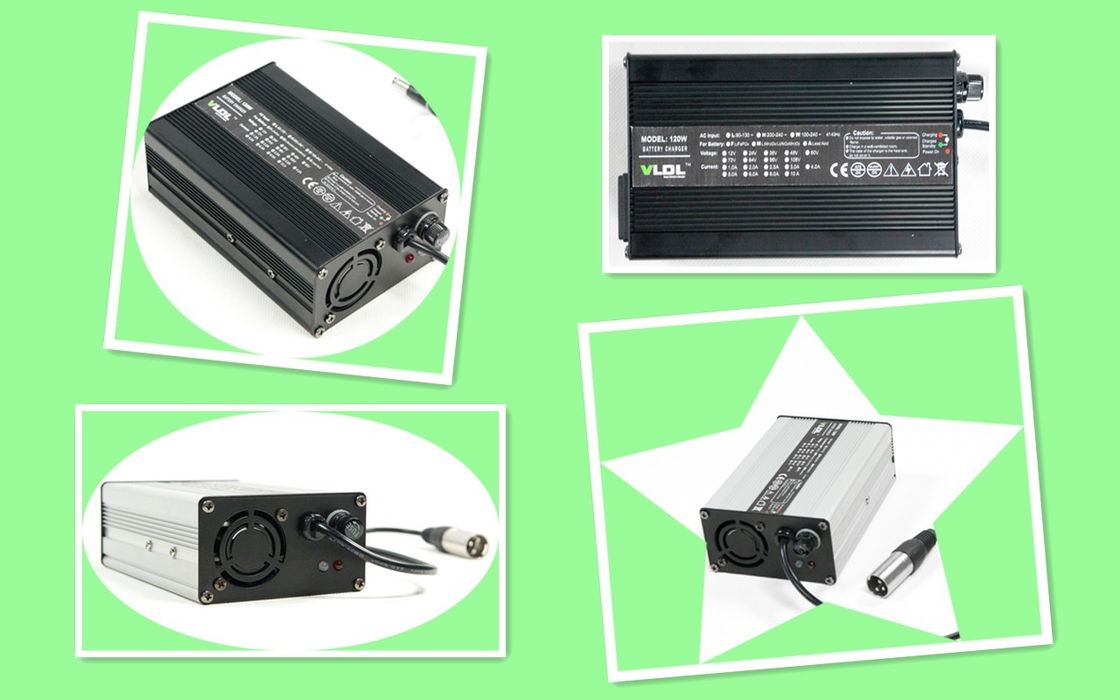

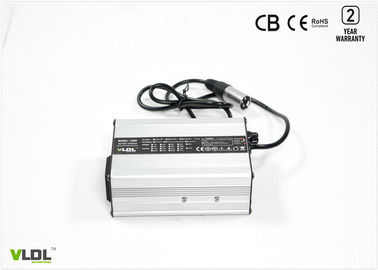

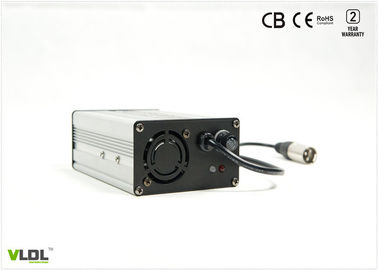

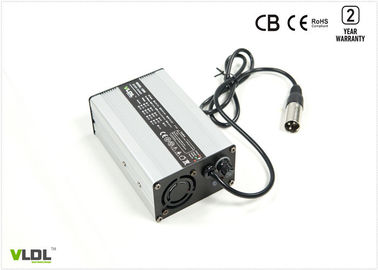

Small 0.8KG Smart Electric Scooter Charger 36V 2.5A Worldwide 110 - 240 Vac Input Output

Small 0.8KG Smart Electric Scooter Charger 36V 2.5A Worldwide 110 - 240 Vac Input Output

    • Small 0.8KG Smart Electric Scooter Charger 36V 2.5A Worldwide 110 - 240 Vac Input Output
    • Small 0.8KG Smart Electric Scooter Charger 36V 2.5A Worldwide 110 - 240 Vac Input Output
    • Small 0.8KG Smart Electric Scooter Charger 36V 2.5A Worldwide 110 - 240 Vac Input Output
    • Small 0.8KG Smart Electric Scooter Charger 36V 2.5A Worldwide 110 - 240 Vac Input Output
  • Small 0.8KG Smart Electric Scooter Charger 36V 2.5A Worldwide 110 - 240 Vac Input Output

    Product Details:

    Place of Origin: China
    Brand Name: VLDL
    Certification: CE, ROHS
    Model Number: VL36025 or VL36025L

    Payment & Shipping Terms:

    Minimum Order Quantity: 12/pcs
    Price: Negotiable
    Packaging Details: Carton, 12pcs/carton
    Payment Terms: T/T, Paypal
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Size: 135*90*50 MM
    Net Weight: 0.8 KG Color: Silver Or Black
    Applied To: 36V Lithium Or Lead Acid Battery Input Volt: 110 - 230Vac
    Output: Rated 36V 2.5Amps, Max 43.8V / 44.1V Applied To EV: Electric Mobility Scooters
    Max Output Power: 120W

    Small 0.8KG Smart Electric Scooter Charger 36V 2.5A Worldwide 110 - 240 Vac Input Output



    Brief Description:



    Worldwide 110-240Vac input and output 36V 2.5 amps output, max 43.8V or 44.1V smart charging with 4 steps. As wholesale supplier, this 36V 2.5A charger is designed by Danl New Energy, high quality and 2 years warranty. It can be widely applied to charge electric tools, electric lawnmower, electric mobility, electric scooter, electric wheelchair.



    Features:



    ◆ Advanced high frequency switching mode power supply technology.

    ◆ DC output isolated from AC input.

    ◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.

    ◆ Charging parameters are insensitive to the AC input line voltage variations.

    ◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

    ◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

    ◆ Possibility to customize charging curve for request.

    ◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

    ◆ Efficiency > 95%.

    ◆ Forced ventilation with fans.

    ◆ 100% full load burn-in test.

    ◆ Aluminum casing, light weight, portable.



    Technical Specs.:



    1) Dimensions(LxWxH): 135 x 90 x 50mm

    2) Net weight: 0.8 KG

    3) Max charging voltage(CV): 43.8 / 44.1 volt

    4) Floating voltage: customized

    5) Max output current (CC): 2.5 amps

    6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

    7) AC input voltage: 110 - 240Vac

    8) AC input freq.: 50 / 60 Hz

    9) AC plug: customized by users country

    10) Output connector type: customized by applications

    11) Enclosure: Aluminum



    Output series: 120W     Size: 135×90×50 mm     Net weight: 0.8 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching

    AC Input:

    85~264V



    Frequency:

    47~63HZ



    VL1206L 12V LiFePO4 Battery   14.6V 6A CC5~8%
    VL1206 12V Lead-acid Battery 13.5V 14.7V 6A CC20%
    VL2404LM 24V Li-MnO2 Battery   29.4V 4A CC5~8%
    VL2404 24V Lead-acid Battery 27.6V 29.4V 4A CC20%
    VL3603L 36V Li-MnO2 Battery   42V 3A CC5~8%
    VL3602 36V Lead-acid Battery 41.4V 44.1V 2A CC20%
    VL4802LM 48V Li-MnO2 Battery   54.6V 2A CC5~8%
    VL4802 48V Lead-acid Battery 55.2V 58.8V 2A CC20%
    Note: customized input / output / plug type / connectors are available.
