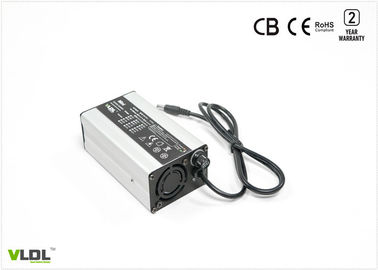

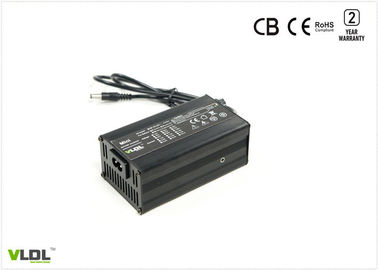

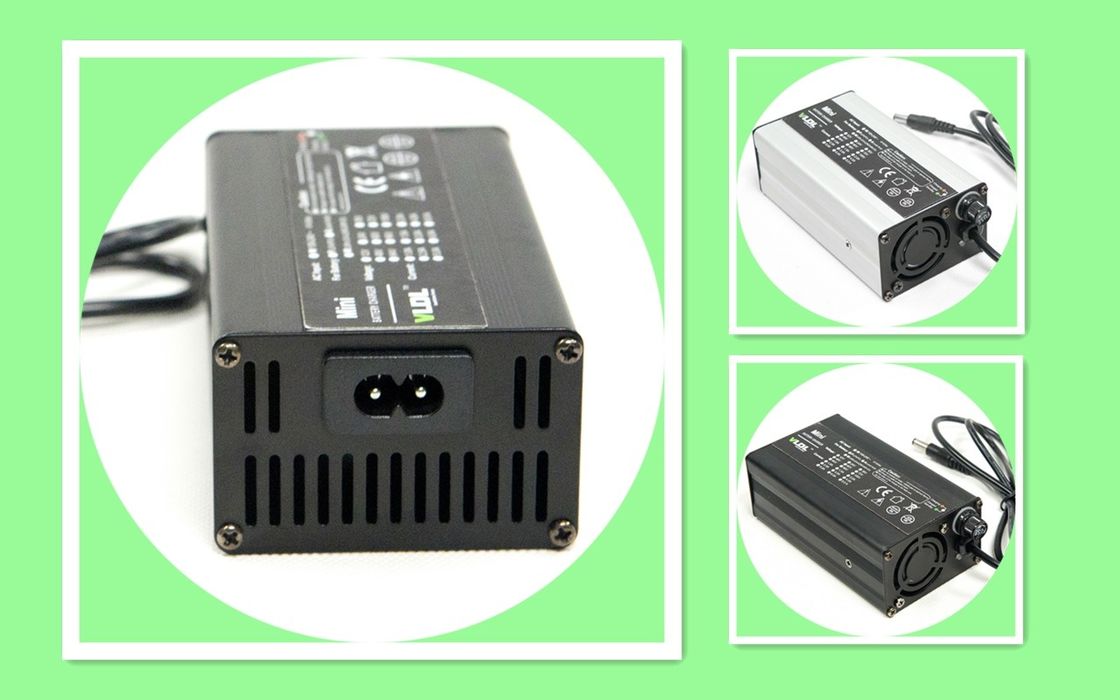

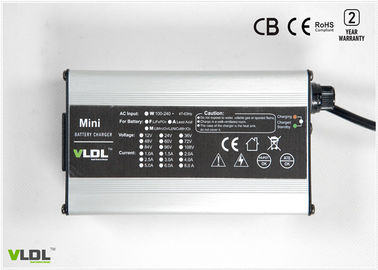

Smart Sealed Lead Acid Battery Charger Four Steps Charging 36 Volts 2 Amps

Smart Sealed Lead Acid Battery Charger Four Steps Charging 36 Volts 2 Amps

    • Smart Sealed Lead Acid Battery Charger Four Steps Charging 36 Volts 2 Amps
    • Smart Sealed Lead Acid Battery Charger Four Steps Charging 36 Volts 2 Amps
    • Smart Sealed Lead Acid Battery Charger Four Steps Charging 36 Volts 2 Amps
    • Smart Sealed Lead Acid Battery Charger Four Steps Charging 36 Volts 2 Amps
  • Smart Sealed Lead Acid Battery Charger Four Steps Charging 36 Volts 2 Amps

    Product Details:

    Place of Origin: CHINA
    Brand Name: VLDL
    Certification: CE, ROHS
    Model Number: VL3602

    Payment & Shipping Terms:

    Minimum Order Quantity: 12pcs
    Price: Negotiable
    Packaging Details: 12 pcs / carton
    Delivery Time: 7 - 10 days
    Payment Terms: TT, Paypal
    Supply Ability: 1,000 pcs / month
    Contact Now
    Detailed Product Description
    Housing Material: Aluminum Size: 120*69*45 Mm
    Net Weight: 0.6 KG AC Input Voltage: 110 - 230 Vac
    DC Output: Rated 36V 2A, Max 44.1V Frequency: 50 / 60 Hz
    Charge Method: Pre Charge, CC, CV, Floating / Trickle Or Shut Off Floating Voltage: 41.4 Vdc

    Smart Sealed Lead Acid Battery Charger Four Steps Charging 36 Volts 2 Amps

    Sealed lead acid battery charger 36 volts 2 amps, input with worldwide 110 to 230Vac and rated output voltatge is 36V 2A. Smart max charging voltage is 44.1V for SLA type batteries or AGM batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and pretect your battery life maximumly. High quality, factory price and 2 years warranty.

    Features

    1) Optional charging methods: Lithium or AGM batteries.
    2) Advanced high frequency switching mode power supply technology.
    3) DC output isolated from AC input.
    4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
    5) Charging parameters are insensitive to the AC input line voltage variations.
    6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
    7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
    8) Aluminum casing, light weight, portable.
    9) 100% full load burn-in test.
    10) 2 years warranty.

    Technical Specs.:
    1) Dimensions(LxWxH): 120x69x45mm
    2) Net weight: 0.6 KG
    3) Max charging voltage(CV): 44.1 volt
    4) Floating voltage: customized
    5) Max output current (CC): 2 amps
    6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
    7) AC input voltage: 110 - 240Vac
    8) AC input freq.: 50/60 Hz
    9) AC plug: customized by users country
    10) Output connector type: customized by applications
    11) Enclosure: Aluminum


    Output series: 120W Mini     Size: 120×69×45 mm      Net weight: 0.6 KG
    InputModelApply to battery typesFloating VCV (V)CC (A)Switching

    AC Input:

    85~264V



    Frequency:

    47~63HZ



    VL1206L12V LiFePO4 Battery 14.6V6ACC5~8%
    VL120612V Lead-acid Battery13.5V14.7V6ACC20%
    VL2404LM24V Li-MnO2 Battery 29.4V4ACC5~8%
    VL240424V Lead-acid Battery27.6V29.4V4ACC20%
    VL3603L36V Li-MnO2 Battery 42V3ACC5~8%
    VL360236V Lead-acid Battery41.4V44.1V2ACC20%
    VL4802LM48V Li-MnO2 Battery 54.6V2ACC5~8%
    VL480248V Lead-acid Battery55.2V58.8V2ACC20%
    Note: customized input / output / plug type / connectors are available.



    Battery Knowledge


    Q. What do the abbreviations MF, GEL and AGM mean?
    A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.

    Q. What do the abbreviations LiFePO4, Li-ion, Li-MnO2 and LiCoO2 mean?
    A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.


    Battery Charger Knowledge


    Q. What charger should I choose?
    A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.

    Q. Can I charge several batteries in parallel?
    A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.

    Q. Can you really connect and then forget about the charger?
    A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.

    12V 20A sealed lead acid battery charger with max 14.7V CV and 20 amps CC charging, for Euro and US market
