|Place of Origin:||CHINA|
|Model Number:||VL3608 / VL3608L|
|Minimum Order Quantity:||10 pcs|
|Packaging Details:||10 pcs/carton|
|Delivery Time:||7-10 days|
|Payment Terms:||TT, Paypal|
|Enclosure:||Aluminum Case, Silver / Black Color||Dimensions:||170*90*63 MM|
|Net Weight:||1.5 KG||Input Volt:||110 - 230 Vac|
|Output:||Rated 36V 8A, Max 42V Or 44.1V||Mounting Feet:||Available|
|Smart Charge:||Automatic 4 Stages||AC To DC:||Isolated|

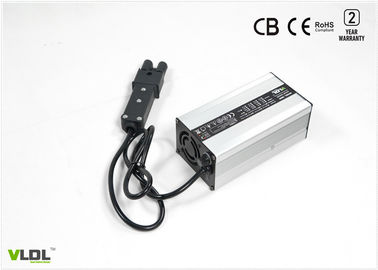

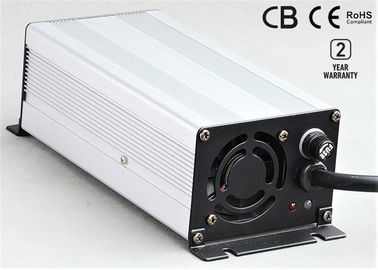

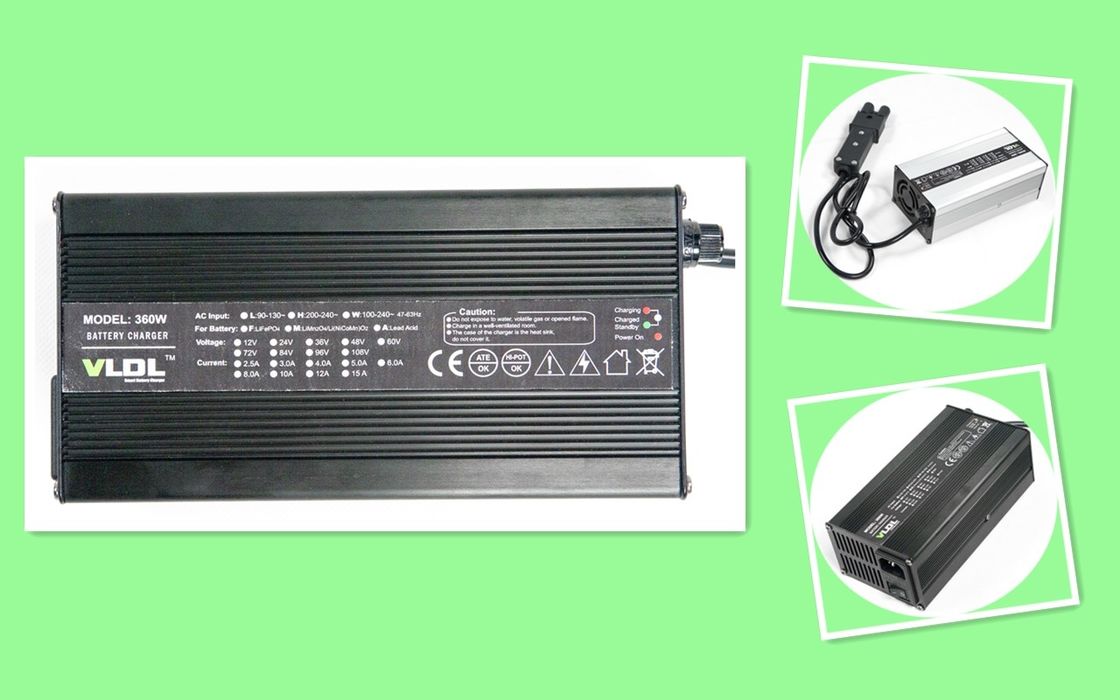

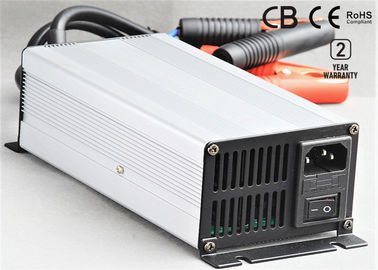

Smart 8 Amps 36 Volt Battery Charger Intelligent For Electric Scooter And Motorcycles
Designed for 36 Volt lithium or lead acid battery powered electric scooters or motorcycles, input with worldwide 110 to 230Vac and rated output voltatge is 36 volt 8 amps. Smart max charging voltage is 42 volt for lithium batteries or 44.1 volt for lead acid deep cycles batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric club cars very fast, with high efficiency and pretect your battery life maximumly. We provide customizing smart battery chargers for all your special batteries of your unique e-scooters or e-motorcycles.
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
|Output series: 360W Size: 170×90×63 mm Net weight: 1.5 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
110 / 230V
|VL1220L||12V LiFePO4 Battery||14.6V||20A||CC5~8%|
|VL1220||12V Lead-acid Battery||13.5V||14.7V||20A||CC20%|
|VL2412LM||24V Li-MnO2 Battery||29.4V||12A||CC5~8%|
|VL2412L||24V LiFePO4 Battery||29.2V||12A||CC5~8%|
|VL2412||24V Lead-acid Battery||27.6V||29.4V||12A||CC20%|
|VL3608LM||36V Li-MnO2 Battery||42V||8A||CC5~8%|
|VL3608L||36V LiFePO4 Battery||43.8V||8A||CC5~8%|
|VL3608||36V Lead-acid Battery||41.4V||44.1V||8A||CC20%|
|VL4805LM||48V Li-MnO2 Battery||54.6V||5A||CC5~8%|
|VL4805L||48V LiFePO4 Battery||43.8V||5A||CC5~8%|
|VL4805||48V Lead-acid Battery||55.2V||58.8V||5A||CC20%|
|VL6004L||60V LiFePO4 Battery||73V||4A||CC5~8%|
|VL6004||60V Lead-acid Battery||67.5V||73.5V||4A||CC20%|
|VL7203L||72V LiFePO4 Battery||87.6V||3A||CC5~8%|
|VL7203||72V Lead-acid Battery||81V||88.2V||3A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
Q. What do the abbreviations MF, GEL and AGM mean?
A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.
Q. What do the abbreviations LiFePO4, Li-ion, Li-MnO2 and LiCoO2 mean?
A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.
Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.
Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.
Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.
Q. Are you a factory or trading company?
A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.
Q. What's about the warranty for Danl battery chargers?
Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.
Q. Do you accept OEM order?
A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.
Q. What is about the lead time for an order?
A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.
Q. What certification do you have?
A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.
Q. Why choose your smart battery chargers?
A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
